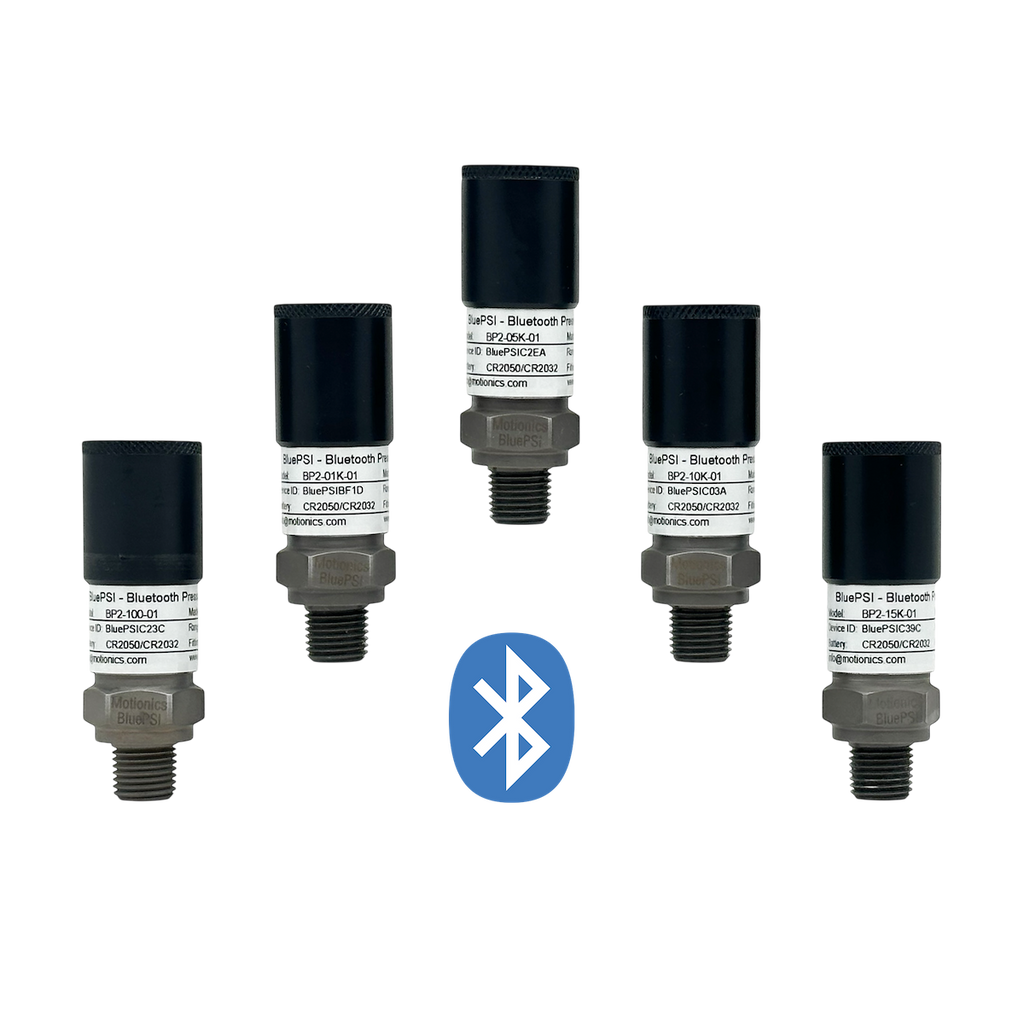

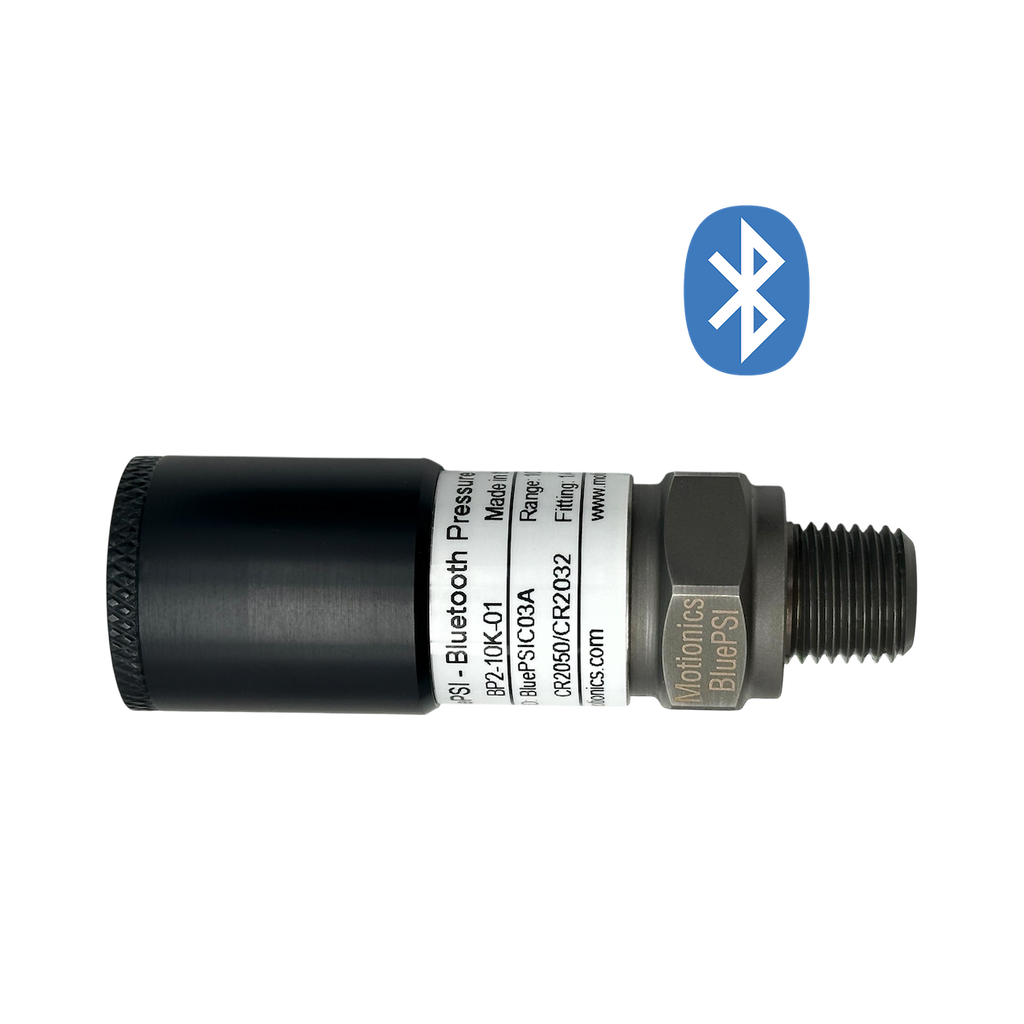

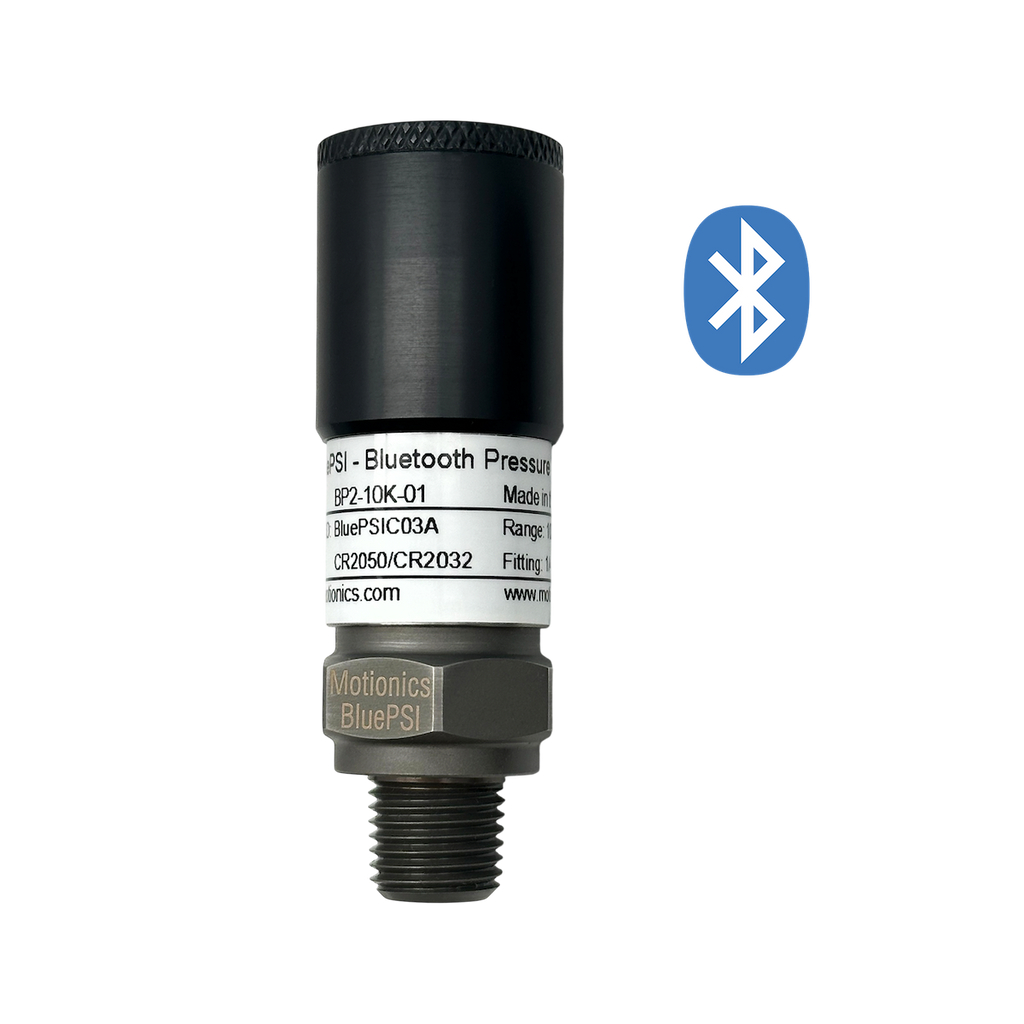

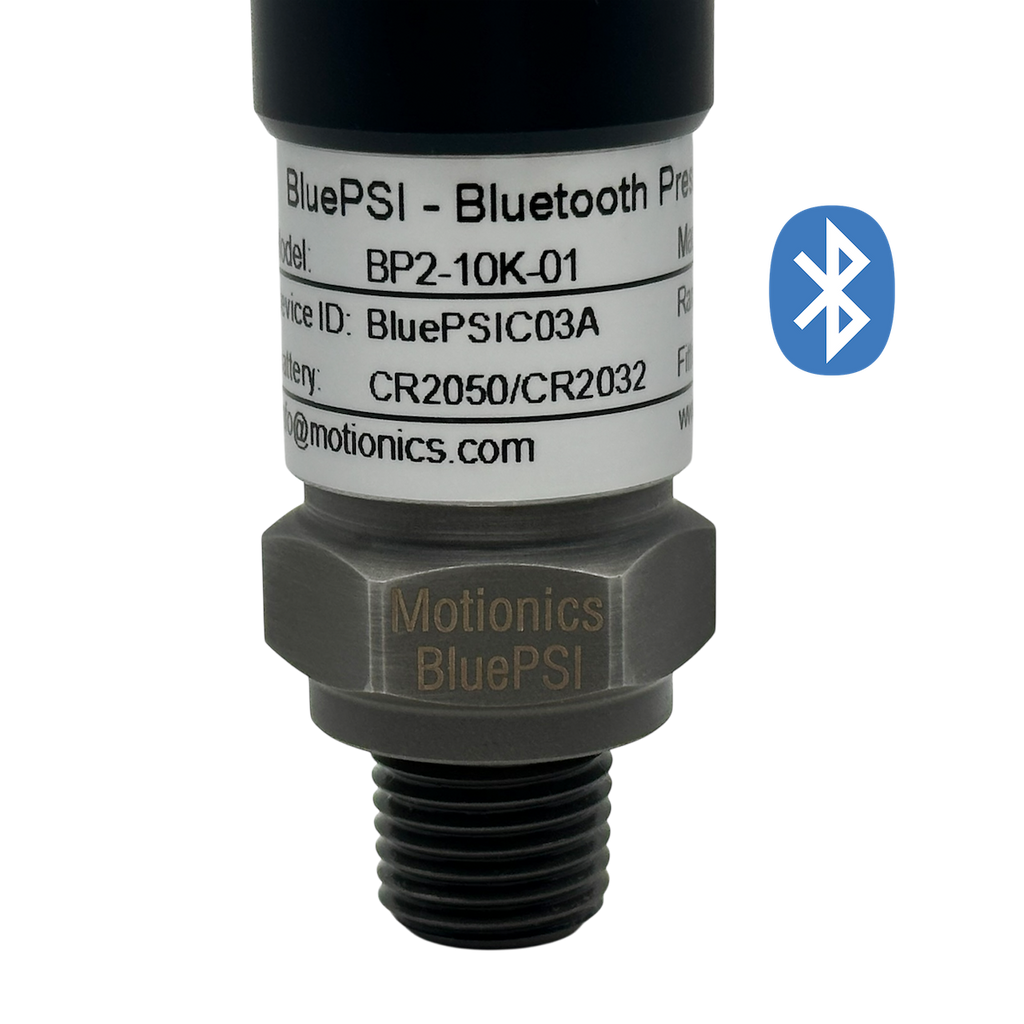

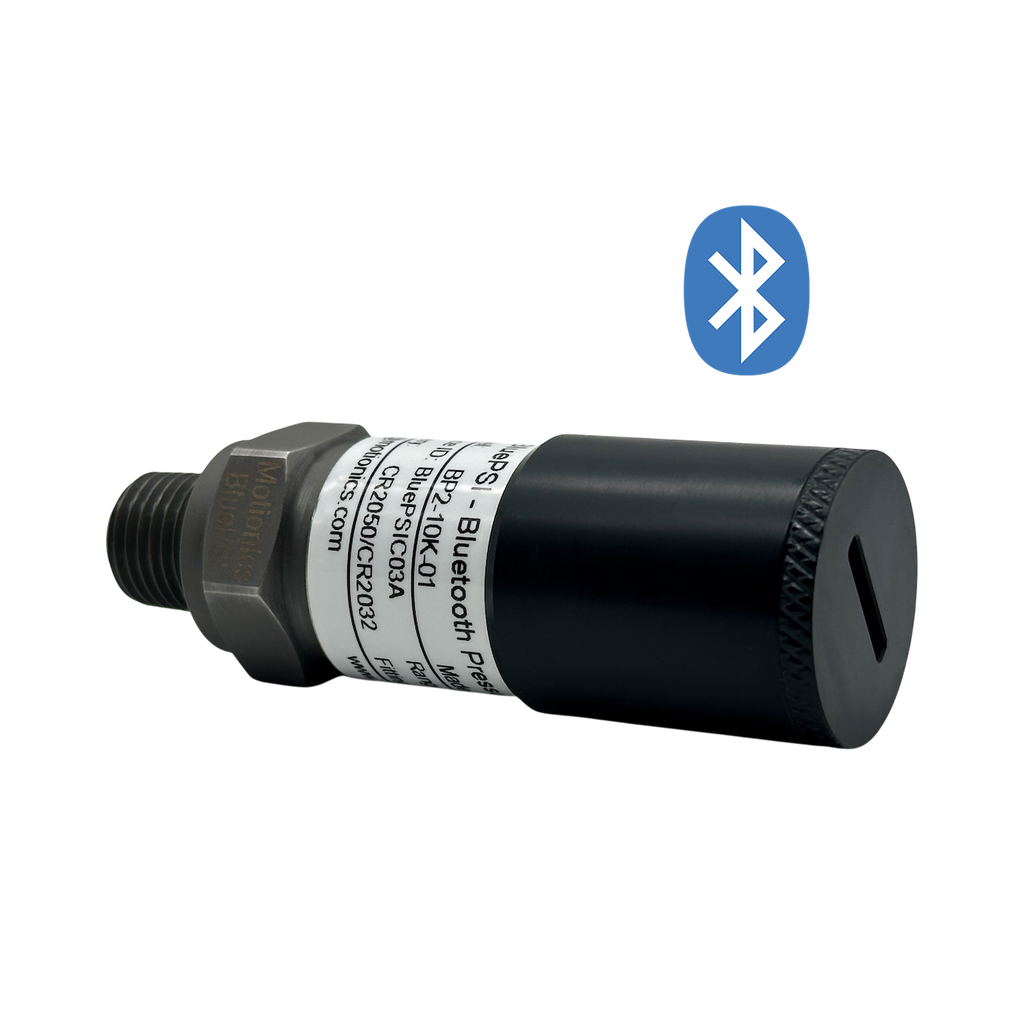

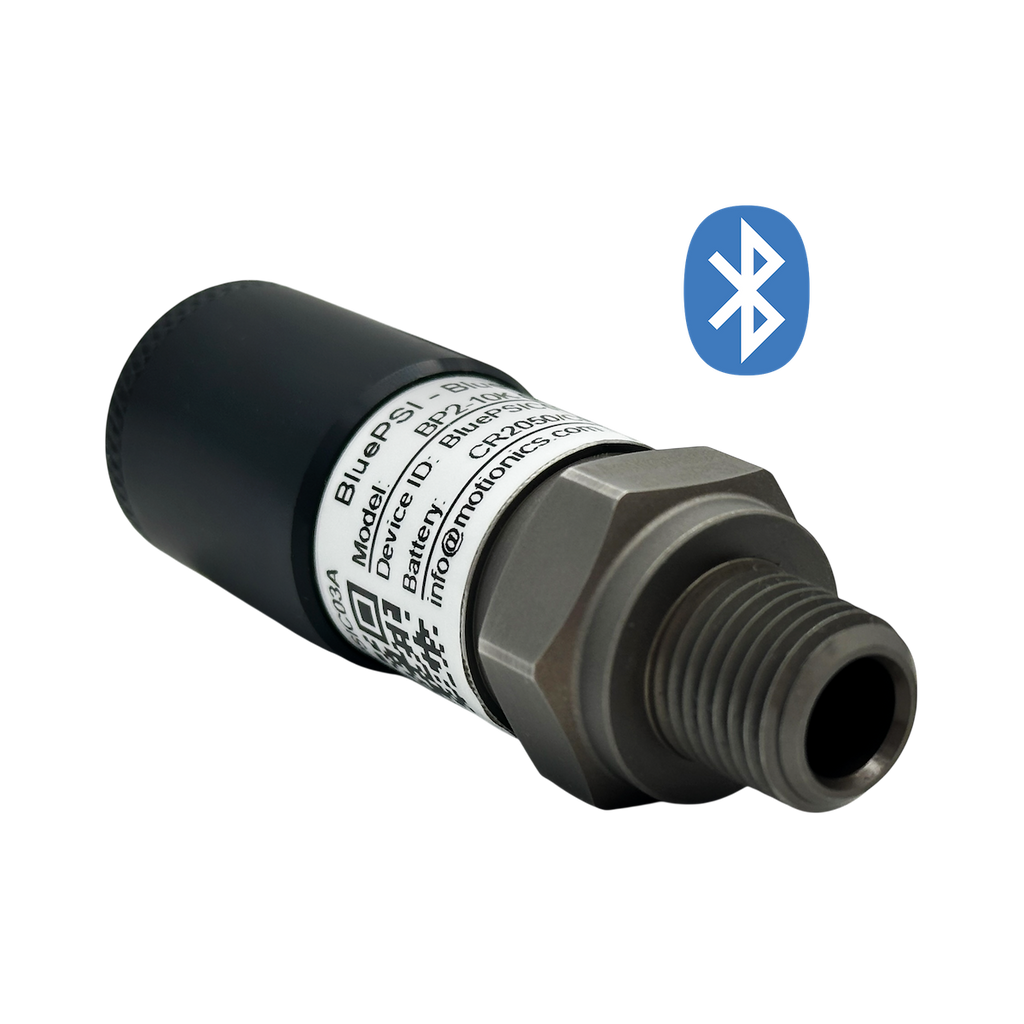

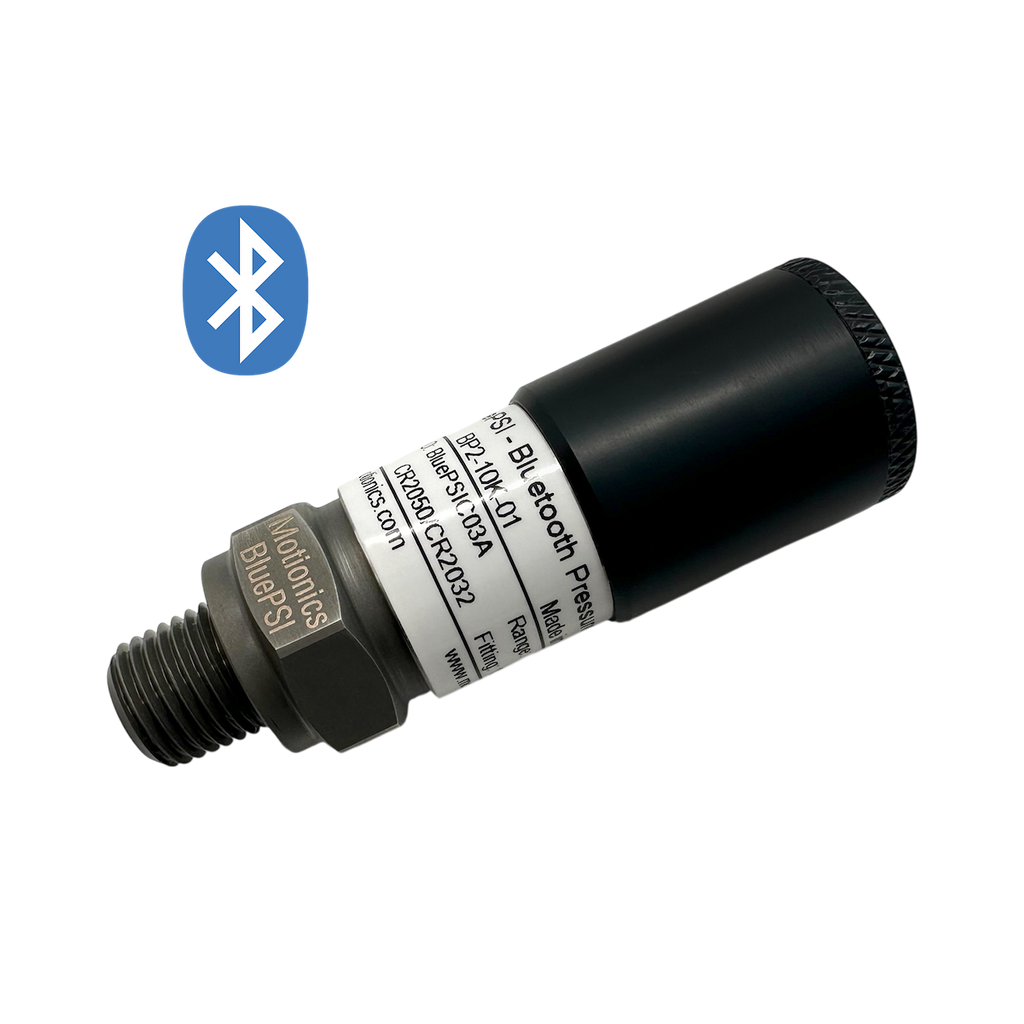

Bluetooth Pressure Sensor BluePSI (11344201620)

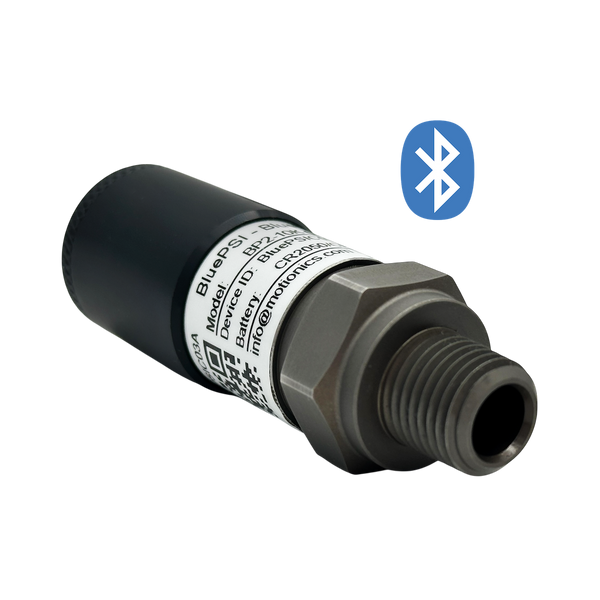

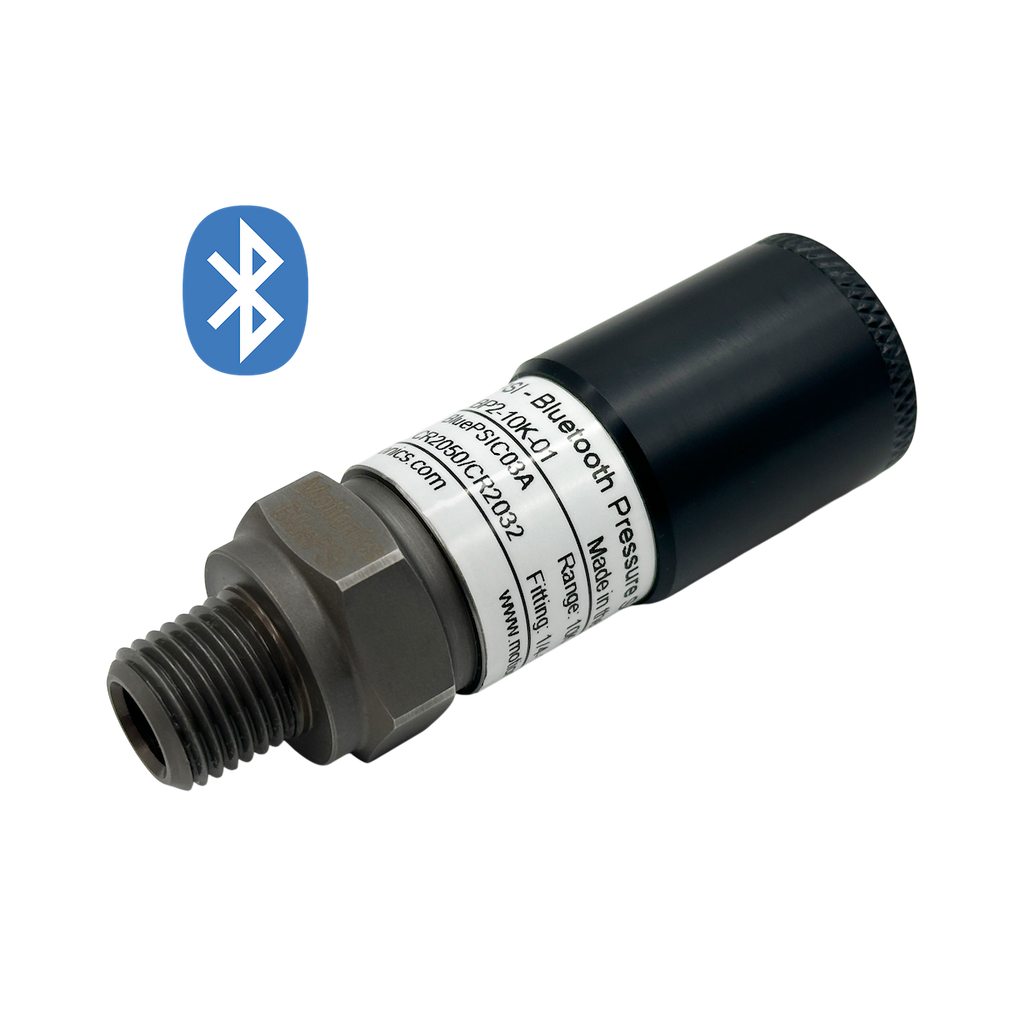

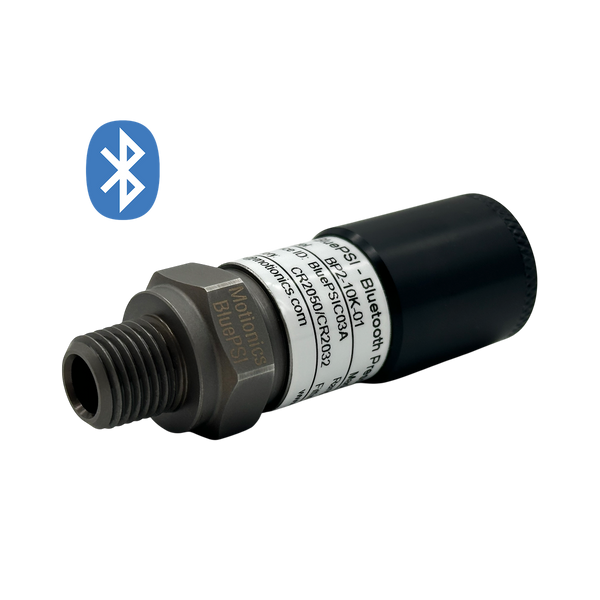

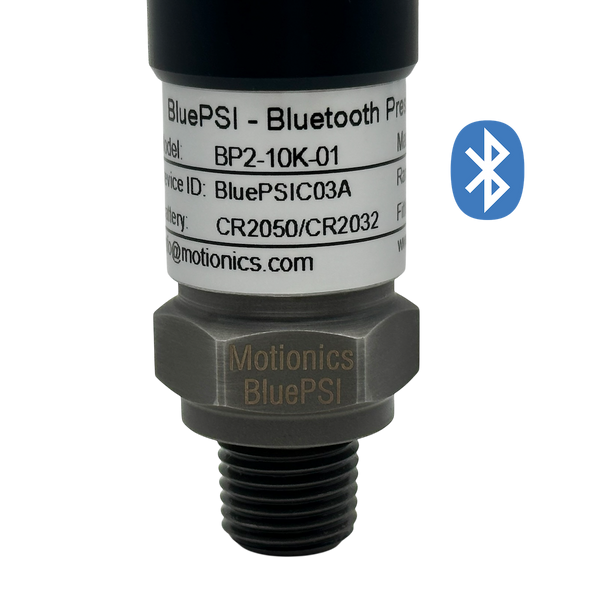

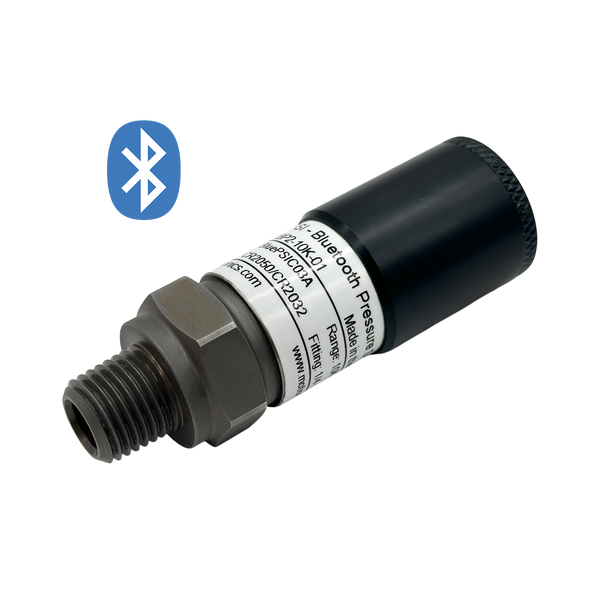

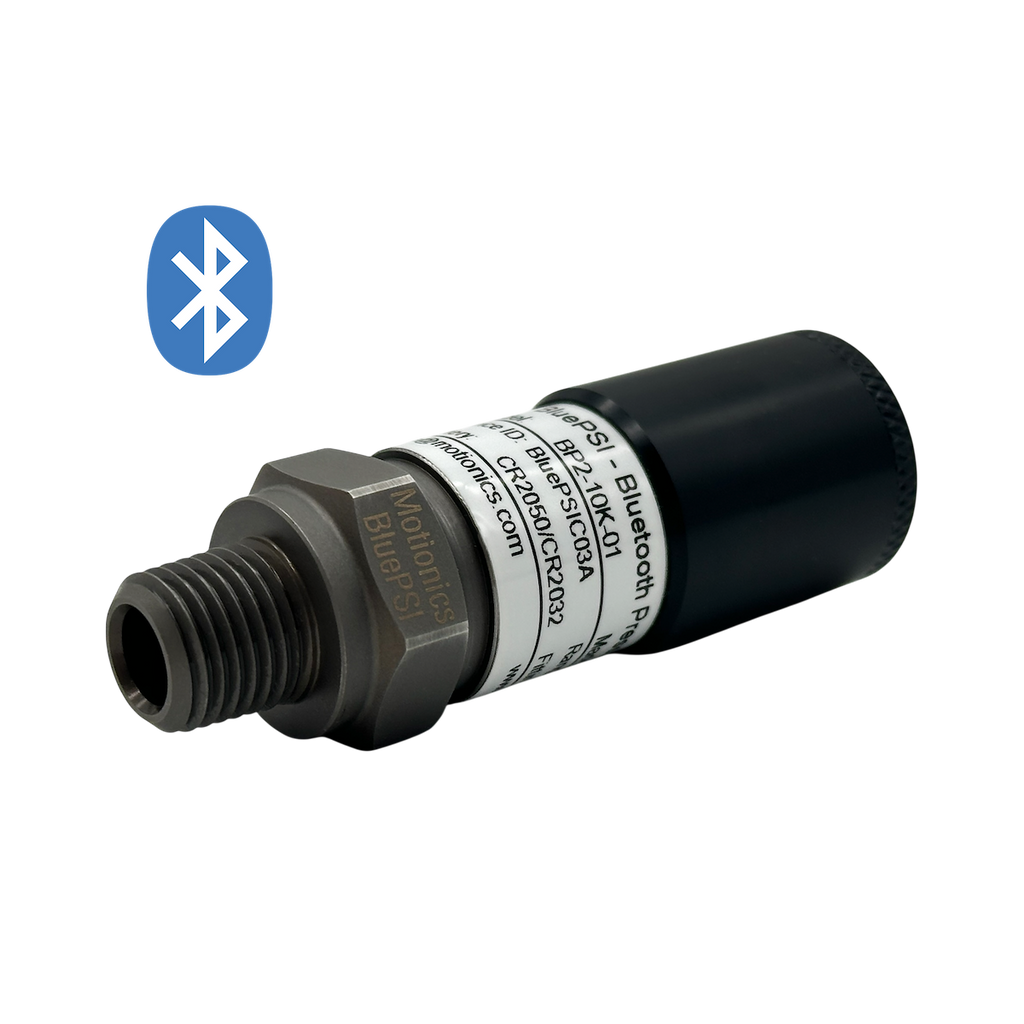

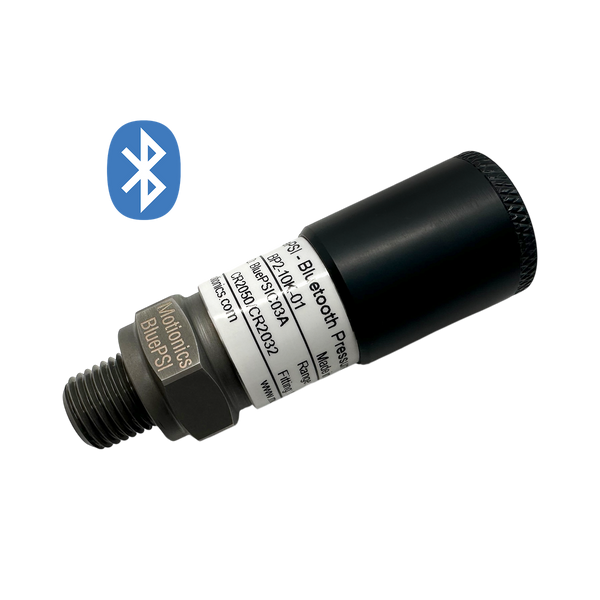

Bluetooth Pressure Sensor BluePSI

Product ID:
$ 500.00

BluePSI is a wireless pressure sensor used for the measurement of liquid or gas pressure. These Bluetooth-enabled pressure sensors, with the help of our free software, allow you to continuously monitor pressure in multiple locations simultaneously on your iOS, Android, or Windows device.

It has high accuracy (±0.25%FS), has a long battery life (up to 2 years with a coin battery), and is IP67 rated for high resistance to water and dust exposure. Most importantly, it eliminates the need for hard wiring and manual data logging thanks to its Bluetooth Low Energy wireless connectivity.

All models of BluePSI allow you to view and record real-time readings, though some models of BluePSI have a data-logging feature that lets you view past readings, as well. Newer models allow for temperature measurement, as well as pressure.

BluePSI transducers are ideal for safe and efficient pressure measurement for pumps, compressors, hydraulic presses, machinery, excavators, pneumatic equipment, and motors in harsh environments.

With our app/software on iOS/Android smart devices and Windows PCs, users can continuously monitor pressure conditions at multiple locations at once.

BluePSI works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.

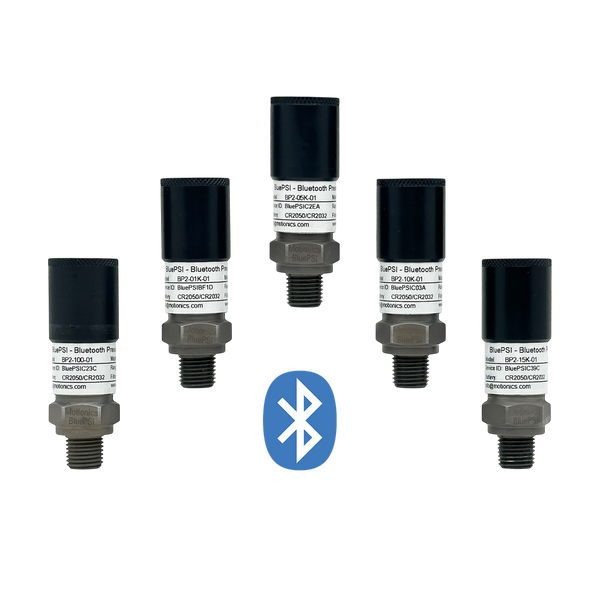

BluePSI BPXXX BP2-XXX-01 BP2-XXX-02
Pressure Measurement Range 30-15,000psi 100-10,000psi
Pressure Accuracy ±0.25%FS
Proof Pressure 2 x msmt range (20,000psi max)
Burst Pressure 5 x msmt range (20,000psi max)
Temperature Msmt Range N/A 32-131°F
Temperature Accuracy N/A ±5.4°F
Transmission Range Up to 65ft / 20m
Wireless Data Rate 5sample/sec (adjustable up to 10sample/sec*)
Weather Proof IP67
Working Temperature -4 to 185°F
Battery Life 2 years at 5 second interval w/CR2050
Battery Type CR2050 / CR2032
Pressure Port 1/4-18NPT (1/4-19BSPT for bar models)
Data Logging No Yes
Real-Time Readings Yes

iOS

MultiGage allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.

MultiGage Reader App

Apple Watch Compatible

  • Companion Apple Watch app for MultiGage Reader on iPhone
  • View wireless measurement device readings on your wrist.
  • Start/stop continuous data recording or capture single reading by tapping on Apple Watch



Pile Load Test is an app that works with wireless dial indicators and wireless load gauges for wireless pile load testing.


Android

MultiGage Reader offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.

Windows

MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.

  • BluePSI x1
  • CR2050 Coin Battery x1
  • Battery Spacer (for CR2032) x1
  • Mini Screwdriver for Battery Removal x1
  • Tool to Remove Battery Cover x1
  • User Manual x1
  • BLE Dongle (Optional)
    *Required for PC use
  • Extended Warranty (Optional)

Brochure

BlueDial Brochure MultiGage Brochure (Software)

BluePSI Selection Guide BluePSI Selection Guide

BluePSI Spec Sheet BluePSI Spec Sheet

BluePSI Dimensions BluePSI BP Drawing

BluePSI Dimensions BluePSI BP2 Drawing

BluePSI Dimensions BluePSI Product Presentation

User Manual

BluePSI Flyer Flyer

Full Product Catalog No.111 Full Product Catalog
