PileSense™: Wireless Static Pile Load Test Kit

Product ID:
$ 530.00

Want to customize a kit with different wireless dial indicators or use wireless load gauges? Contact us for more information.

Want to customize a kit with different wireless dial indicators or use wireless load gauges? Contact us for more information.


Learn more about PileSense™

*Please note: Extended warranty does not cover Tension and Compression Load Cells or the optional iPad with Protective Case.


PileSense™ by Motionics is a fully wireless, modular, and customizable solution for performing static pile load tests with more precision and accuracy. The kit includes Bluetooth sensors that connect to our software, enabling real-time wireless monitoring and recording of pile load tests.

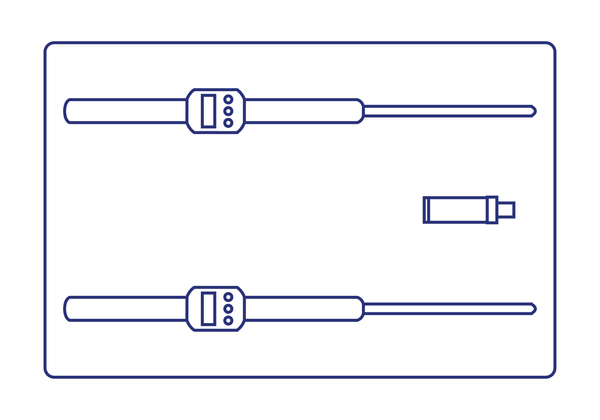

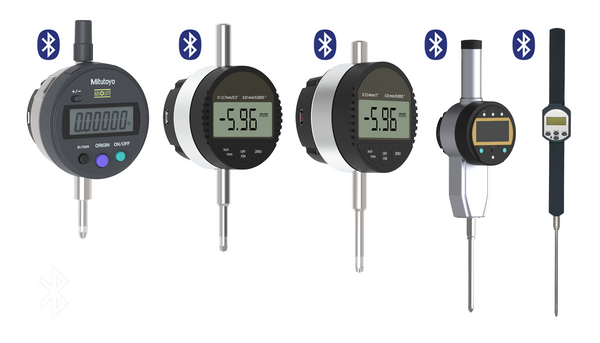

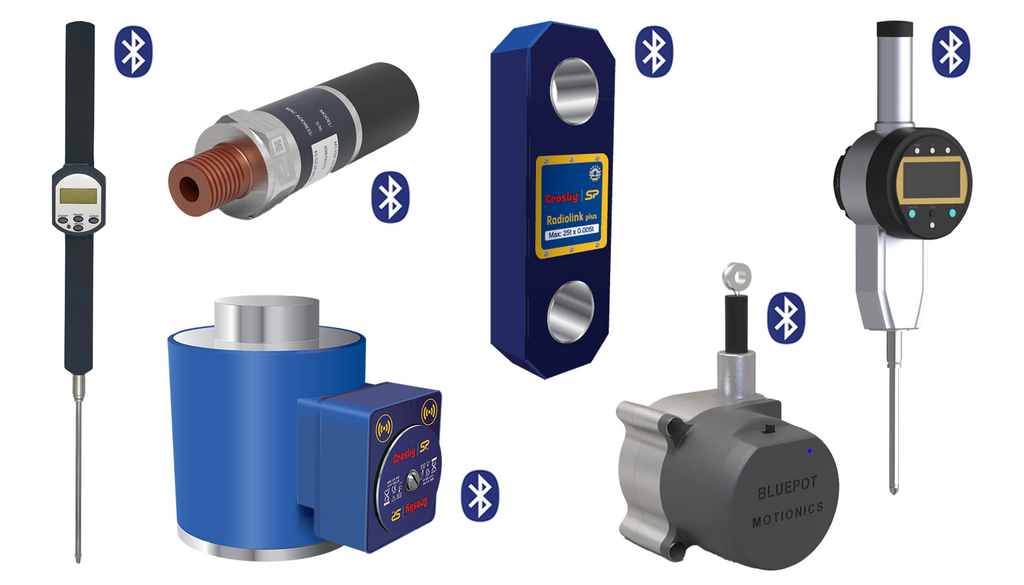

Configure your setup by choosing from a selection of wireless gauges and devices, including BlueDial Bluetooth dial indicators, BluePSI pressure sensors, and Bluetooth load gauges.

All PileSense™ sensors sync seamlessly with our easy-to-use PileSense iPad app or MultiGage PC software, delivering synchronized real-time data updates for more accurate analysis.

The PileSense™ system supports multiple dial indicators (up to 6 on iPad, and even more on Windows), making it scalable for anything from small-scale testing to large, multi-point measurements. For remote monitoring, our optional MultiGage Cloud platform allows you to view and share live test data from anywhere in the world.

Click here for more information.

PileSense™: How It Works

PileSense™: Overview

BluePSI: Bluetooth Pressure Sensor (DEMO)

Conducting Static Pile Load Tests

Static Pile Load Test Measurement

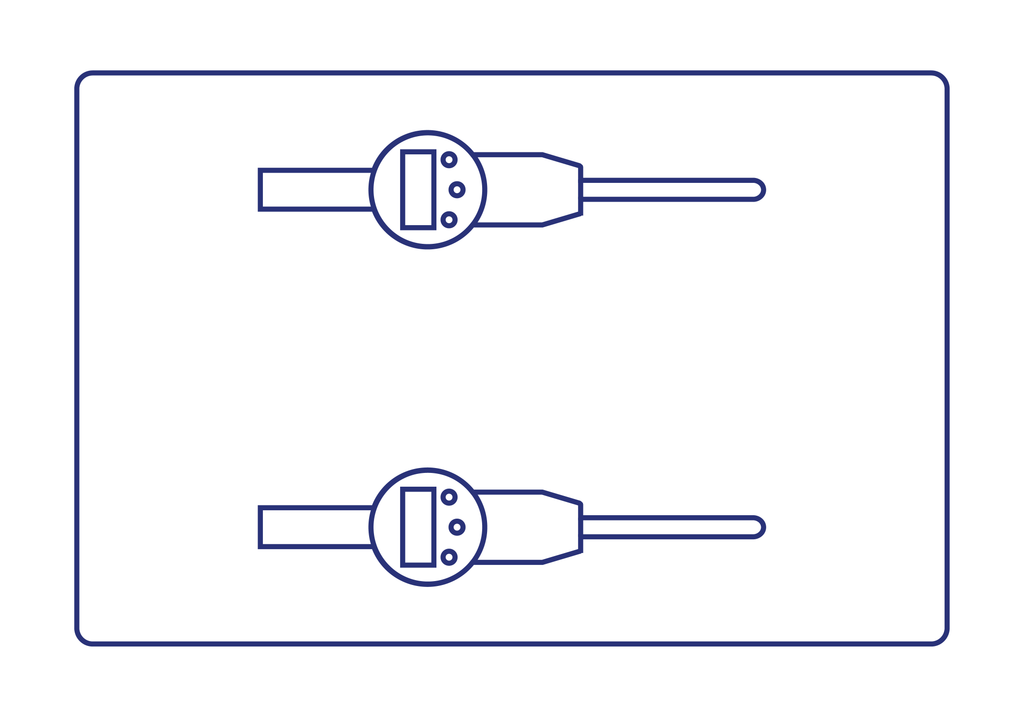

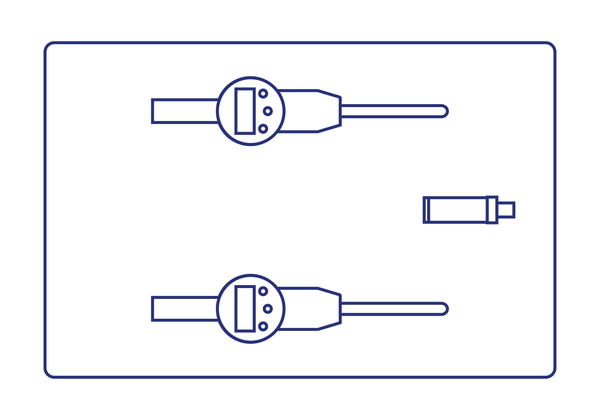

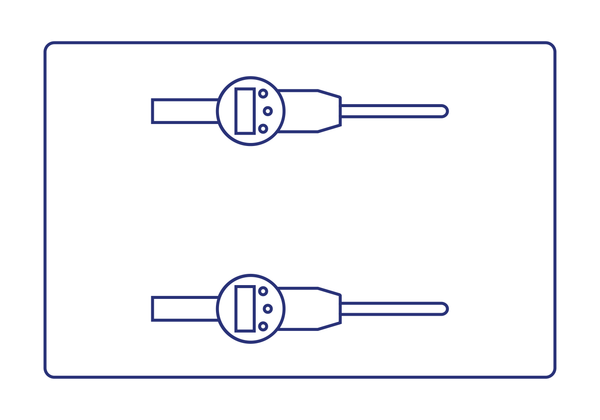

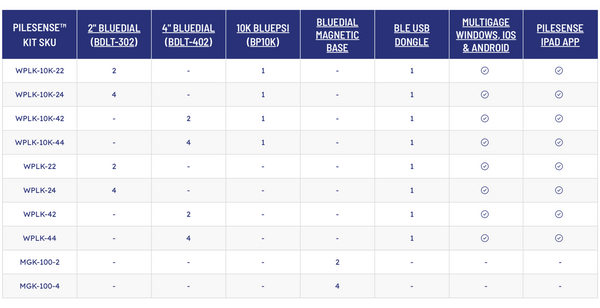

PileSense™ Kit with 2x BlueDial Indicators

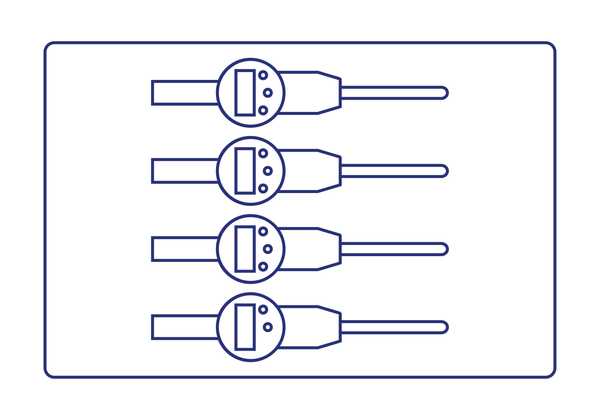

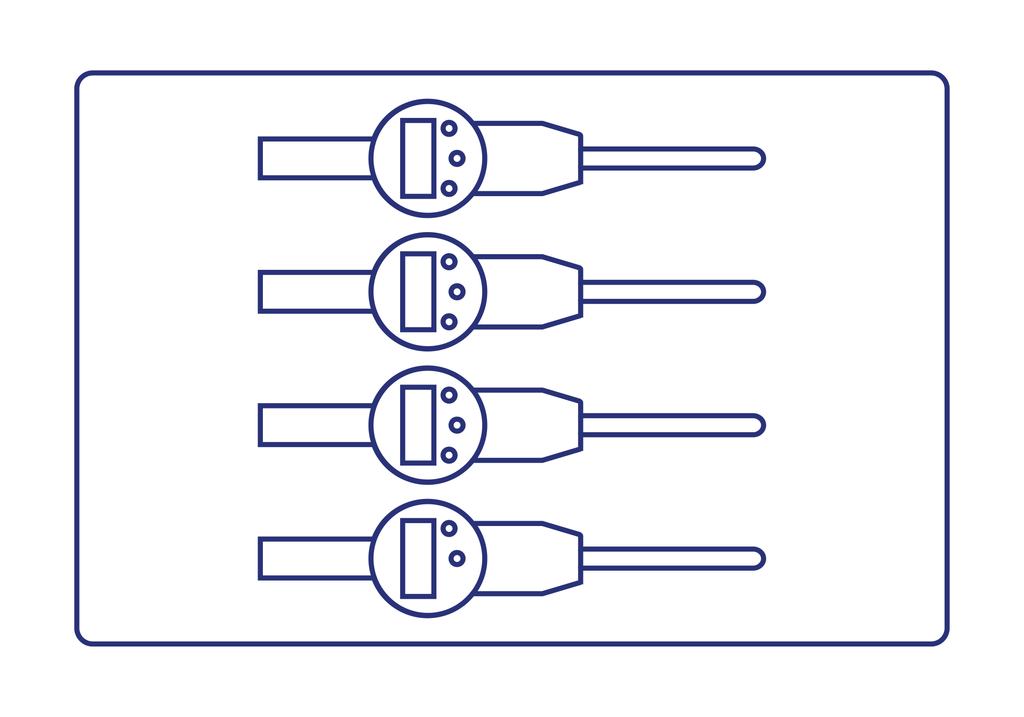

PileSense™ Kit with 4x BlueDial Indicators
  • PileSense™: Wireless Static Pile Load Test Kit Specification
    Measurement Range - Distance Up to 4" (101.6mm) with BlueDial

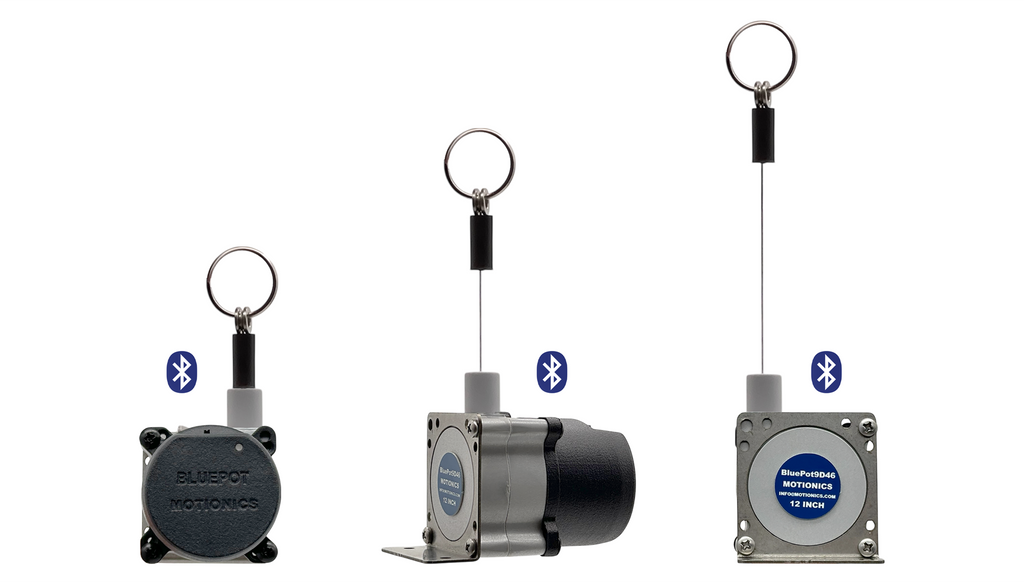

    Up to 50" (1270mm) with BluePot
    Measurement Range - Pressure Up to 15000psi
    Measurement Range - Load Compression: Up to 1000t (2200000lb)
    Tension: Up to 500t (1100000lb)
    Connectivity Bluetooth Low Energy
    Wireless Data Transmission Range Up to 100ft (30m) - Longer range available
    Wireless Data Transmission Rate Configurable up to 10Hz
    Software Compatibility Windows PC, iOS, Android

    PileSense™ Kits can be customized for longer range connections and to integrate other types of gauges.
    Contact us for more information.

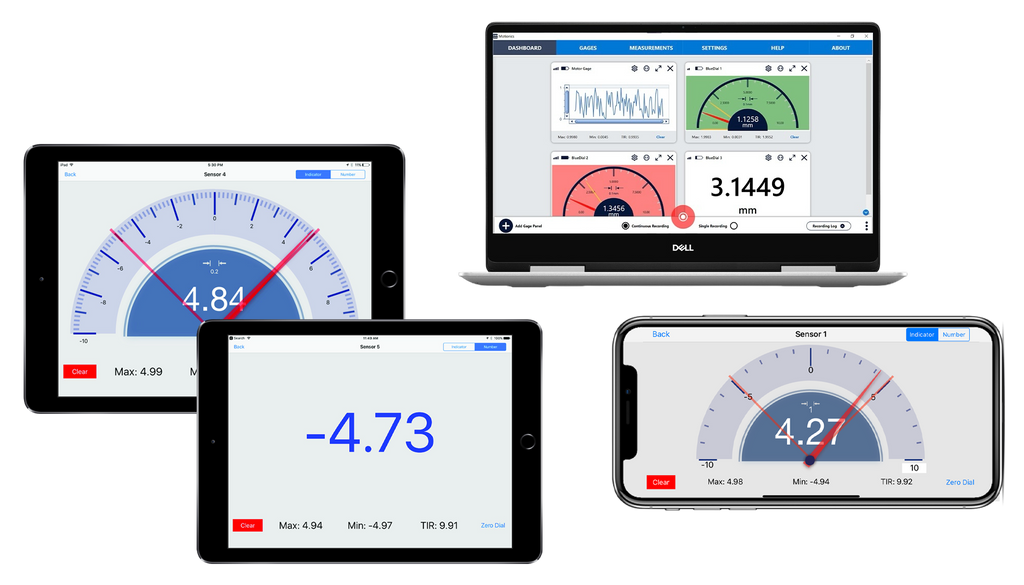

Motionics' software is available to download on Windows PCs, iPad, iPhone, Apple Watch and Android devices. For more information, click here

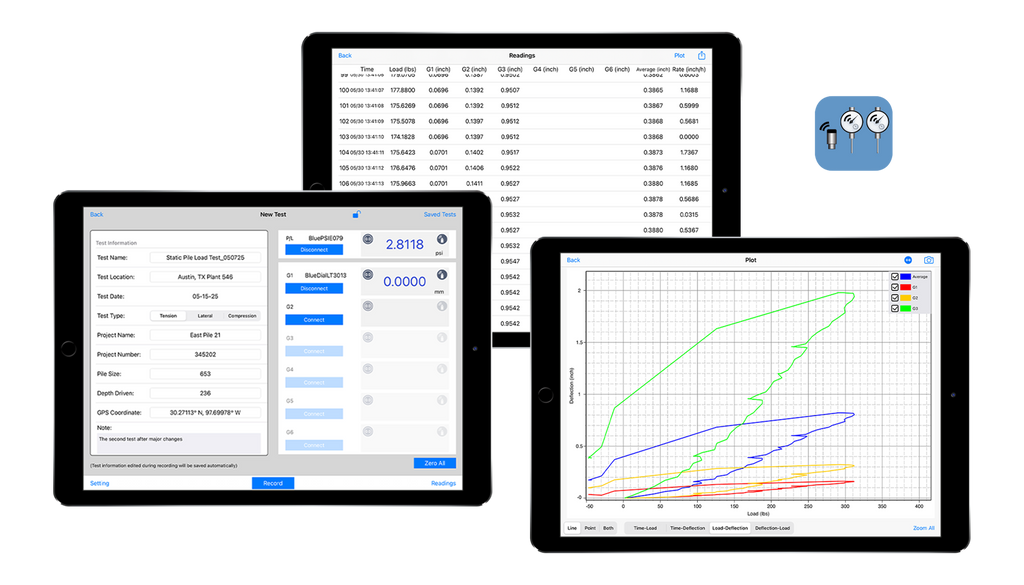

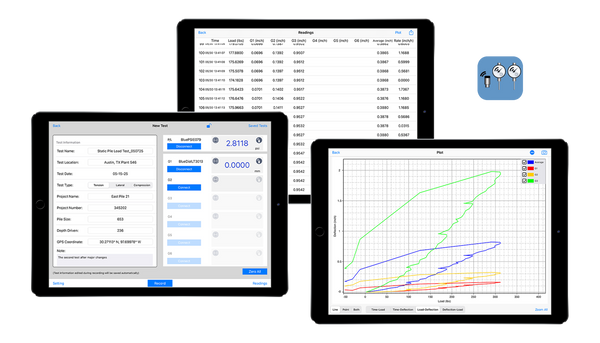

PileSense iPad App

The PileSense iPad App is an iPad application that works with all wireless deflection and load gauges. It is designed specifically for pile load test applications.

MultiGage Windows

MultiGage Windows software is used with this USB Bluetooth Dongle to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.

MultiGage iOS & Android

For even more convenience in the field, the MultiGage Reader app is available to download on iPhone, iPad, Apple Watch and Android devices.

  • BlueDial: Bluetooth Dial Indicator (Up to 6)
  • BluePSI: Bluetooth Pressure Sensor
  • USB Power Adapter
  • USB Charging Cable

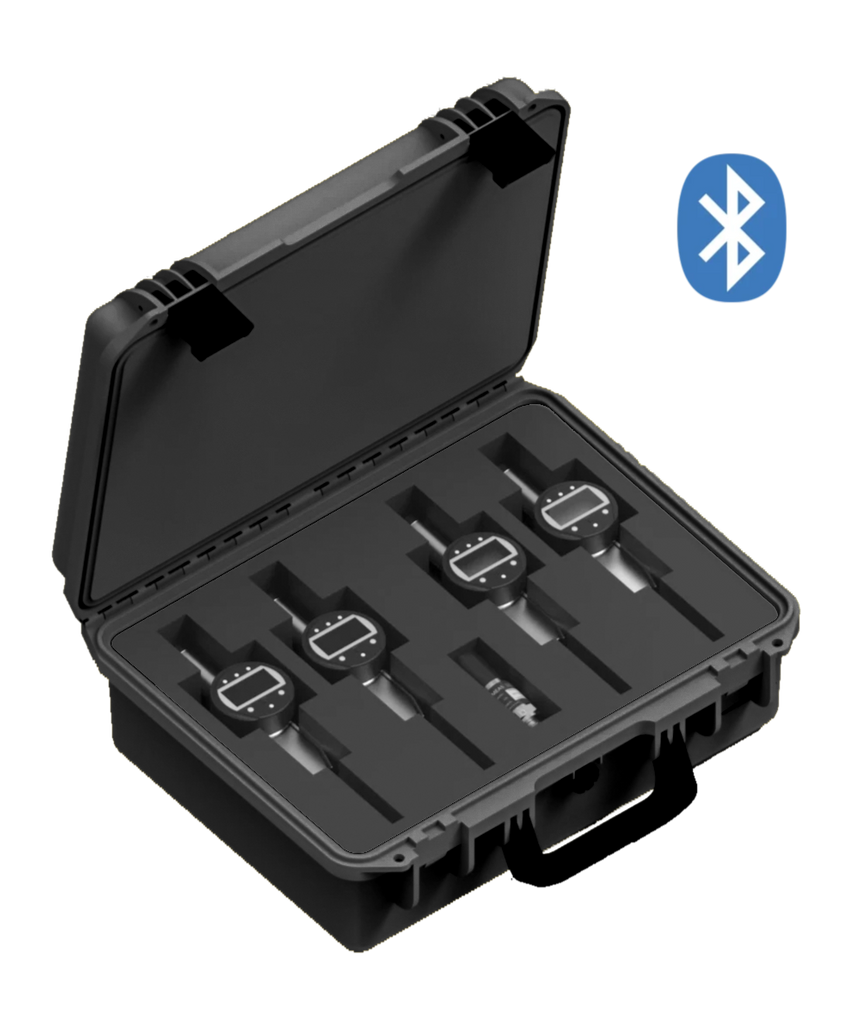

  • Protective PileSense™ Case
  • PileSense iPad App
  • iPad with Protective Case (Optional)
  • 3-Year Extended Warranty (Optional)
  • Manufacturer Calibration (Optional)
