Wireless Load Gauge

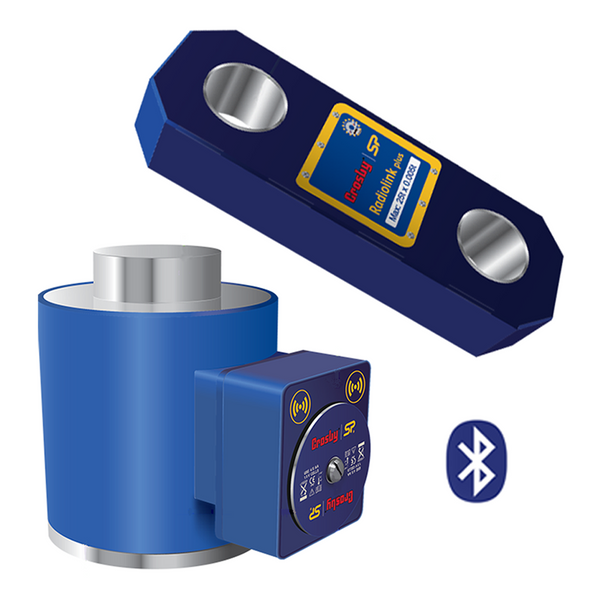

Product ID:Motionics’ wireless load gauge combines a high-strength industrial force gauge with the safety and convenience of Bluetooth Low Energy technology.
You can connect this gauge to your iOS, Android, or PC device with our free software, MultiGage, and read and record measurements remotely. This takes you out of hazardous, hard-to-reach locations when taking force measurements.
Our range of models support tension and compression force measurements across various resolution, accuracy, and capacity needs. With a rugged IP67-rated shell and high weight-to-strength ratio, this force gauge thrives in harsh environments.
These load cells are used in a PileSense™: Wireless Static Pile Load Test Kit, a modular and customizable solution that allows users to perform pile load tests with more precision and accuracy. Click here for more information.
| WLG-C1 | WLG-T1 | |
|---|---|---|
| Capacity | 5-1,000t (depends on model) | 1000kg-500t (depends on model) |
| Resolution | 0.001-0.5t (depends on model) | 0.5kg-0.1t (depends on model) |
| Accuracy | ±0.1% full scale | |
| Wireless Data Rate | 10Hz | |
| Transmission Range | 100m / 328ft | |
| Working Temperature | 14° to 122°F | |
| IP Rating | IP67 | |
| Battery | 4x AA | |
| Battery Life | 500hr | |
iOS
PileSense iPad App is an iPad application that works with wireless compression and tension Load cells as well as Bluetooth digital dials and pressure sensors for easier, more efficient pile load testing. Click here for more information.
Android
MultiGage Reader offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
Windows
MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
- 1x Wireless Load Gauge
- 1x Protective Case
- 4x AA Batteries
- 1x User Guide
