Wireless Hydraulic Pressure Test Kit - Extended Warranty

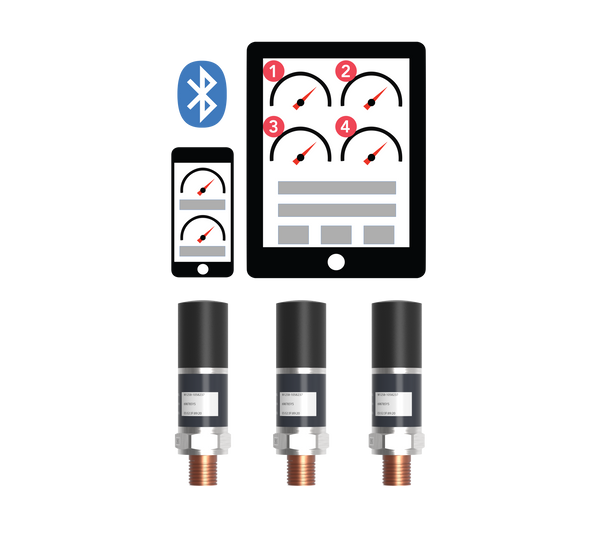

Motionics' wireless hydraulic pressure test kit is your solution for safe, efficient pressure testing with heavy machinery. Our Bluetooth-enabled pressure sensors, with the help of our free software, allow you to continuously monitor pressure and temperature in multiple locations simultaneously on your iOS, Android, or Windows device.

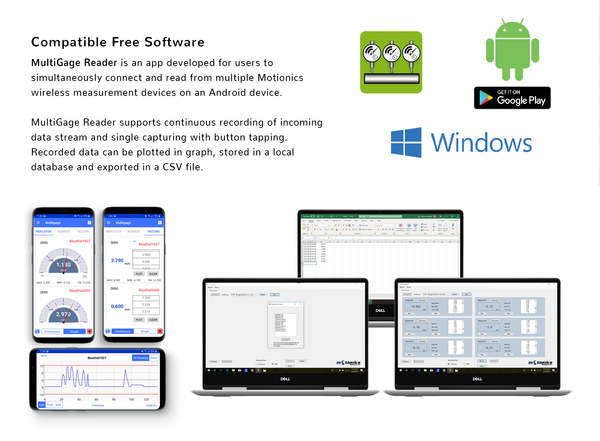

Motionics' free software, MultiGage, allows the user to remotely view pressure readings from a mobile device or PC, set a threshold with G/NG judgment, record data either via single capture mode or continuously, and save and export readings after the recording been completed.

These durable, compact, wireless pressure gauges eliminate the need for hard-wiring and are ideal for pressure measurement for pumps, compressors, hydraulic presses, machinery, excavators, pneumatic equipment and motors in harsh environments. The transducers can also measure and transmit temperature information simultaneously. The kit, with the use of a connector, is compatible with most industrial machinery, including Komatsu, Caterpillar, Hyundai, and Hitachi brand excavators, among many more.

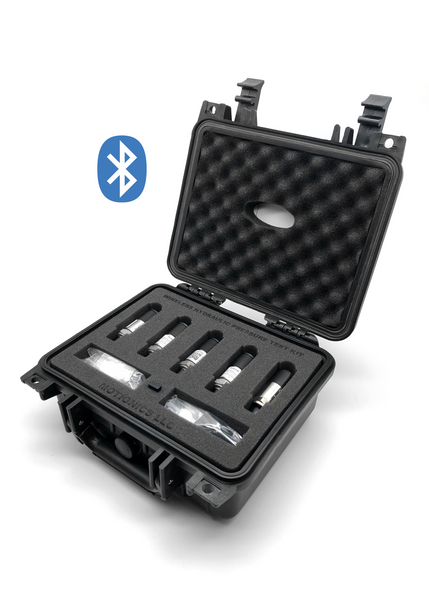

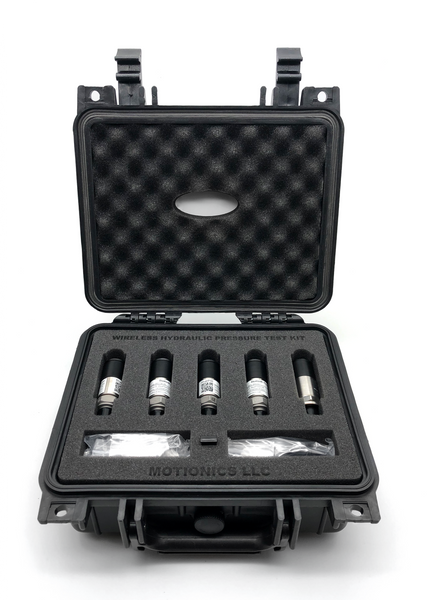

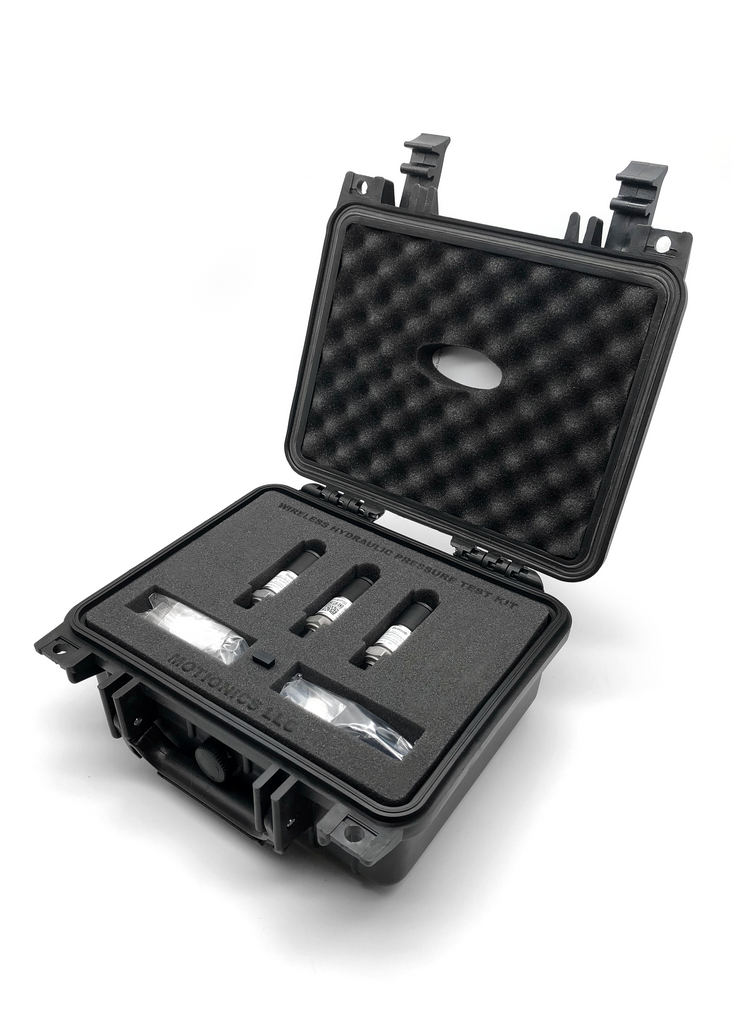

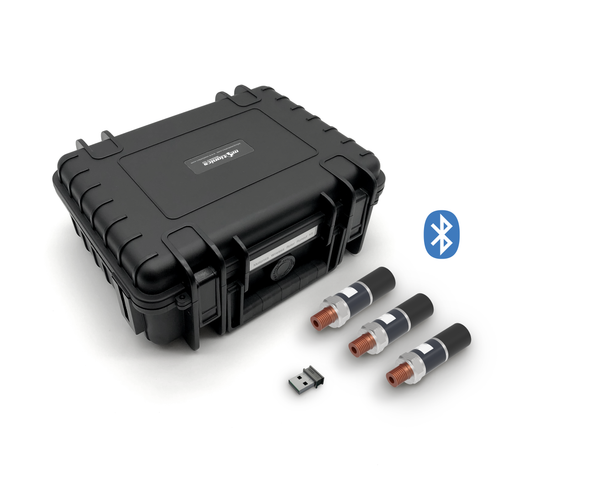

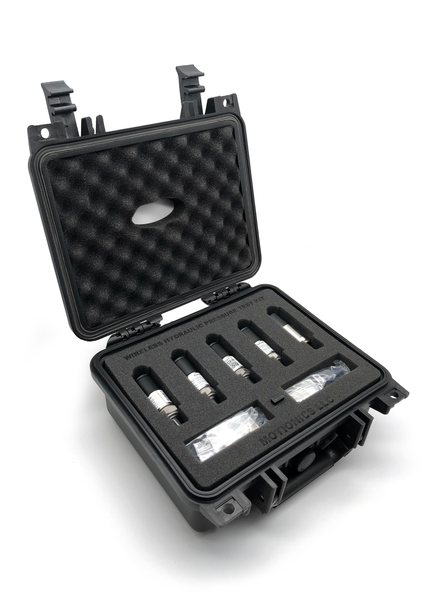

The set comes with three to four wireless pressure gauges, a BLE USB dongle for our Windows software, and a Pelican protective case to keep your test kit in good condition for long-term use.

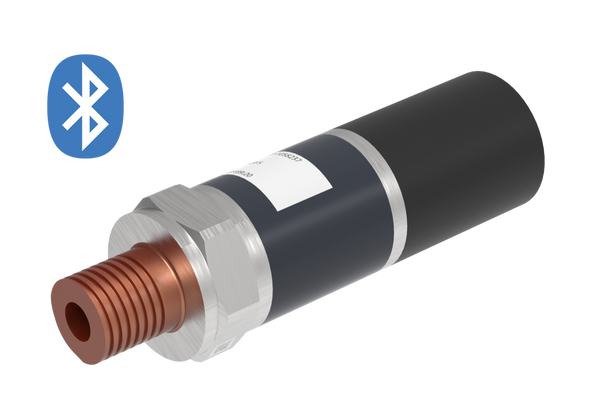

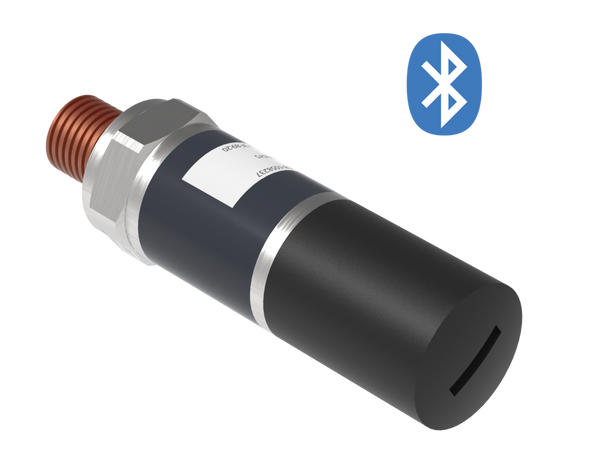

If you would like to customize the ranges of the pressure gauges, you can purchase our BluePSI pressure gauges directly and use them in lieu of an analog or digital gauge.

Motionics BluePSI wireless pressure gauges can also be integrated with your current hydraulic pressure set; you can purchase them independently here.

Cloud Remote Reading Option

BluePSI wireless pressure transducers also work with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.

By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.

MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.

If you would like to further customize your kit, you can contact us.

• Measurement Range: 30 - 15,000 psi
• Accuracy: ±0.25% FS
• Proof Pressure: 2X measurement range (20000 psi max)
• Burst Pressure: 5X measurement range (20000 psi max)
• Pressure Port: ¼-18 NPT (more options available)
• Bluetooth Low Energy 4.0 Wireless Connection
• Wireless Data Transmission Interval: 5s (adjustable)
• Wireless Data Transmission Range: up to 65ft / 20m
• Weather Proof: IP67
• Working Temperature: -5 to 185°F
• Battery: CR2050/CR2032
• Test Hose Length: 60"

iOS

Apple Watch Compatible

• Companion Apple Watch app for MultiGage Reader on iPhone
• View wireless measurement device readings on your wrist.
• Start/stop continuous data recording or capture single reading by tapping on Apple Watch

Android

MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.

Windows

MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.

MultiGage Cloud

MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.

• Bluetooth Pressure Sensor x 3 (more options available)
• Protective Case x 1
• BLE USB Dongle x 1
• User Guide x 1

Brochure

User Manual

Full Product Catalog

MultiGage Brochure

 MultiGage Cloud Brochure

BluePSI Dimensions
