ShakerWatch by Motionics is an advanced iPad-based vibration measurement and analysis tool for vibratory screens and shale shakers.

ShakerWatch features a tri-axial accelerometer with magnetic base that can be attached to any test point on a shaker to measure and analyze vibration motion in three directions.

Wireless Bluetooth connectivity enables safer and more efficient motion and vibration tests for shakers. Innovative wireless technology eliminates wiring and connectors to increase safety, ease of use, and durability.

The ShakerWatch iPad app performs X-Y orbit tests with auto-calculated RPM, G-force, stroke and angle. Bump test, side displacement and support structure vibration tests can be also be performed within the app.

These tests provide invaluable insights into the performance and condition of vibratory equipment, empowering users to make informed decisions swiftly without the need for a deep knowledge of vibration.

Product Overview & Demo :

Replacing the Battery:

ShakerWatch	Specification
Accelerometer Type	Tri-axial
Measurement Range	±40g
Resonant Frequency	±5500Hz
Sampling Rate	500-4000Hz (adjustable)
Data Block Size	256 to 4096 samples (adjustable)
Connectivity	Bluetooth Low Energy
Data Transmission Range	98ft (30m)
Weight	0.380lb (172g)
Dimensions	3.2" Width x 2.0" Depth x 1.6" Height (81mm W x 52mm D x 40mm H)
Working Temperature	-4 to 140°F (-20 to 60°C)
Dust/ Water Protection	IP66
Magnetic Base	Round 35lb (15.88kg)
Battery	Lithium CR2477 3VDC
Battery Life	500hrs
Software Compatibility	iPadOS

ShakerWatch iPad App

ShakerWatch is an iPad application that connects to the ShakerWatch wireless tri-axial accelerometer and allows users to perform various tests for screen and shale shaker vibration measurement and analysis.

App Features

Wireless Tri-axial Vibration Signal Transmission
Automatic Sensor Tilt Angle Compensation
Orbit Test with Auto RPM, G-Force, Stroke and Angle Calculations
Interactive Vibration Waveform, FFT Spectrum, and X-Y Orbit Plot (G Motion Plot)
Color-Coded Side Displacement Tests
Bump Test with Auto Major Frequency Detection
Attach Test Photos and Notes
Auto PDF Test Report Generation
Local Database and Test Record Manager
Export Test Data in Excel File and PDF Test Report

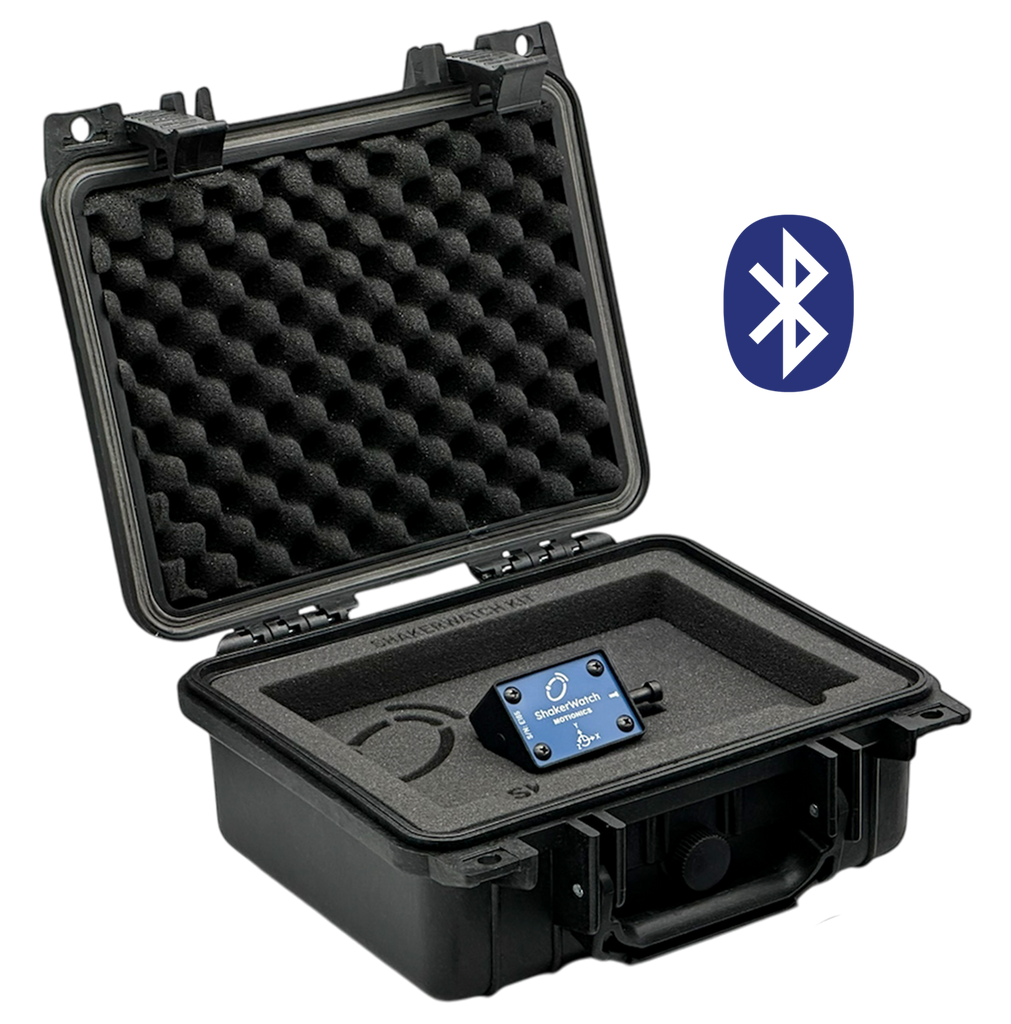

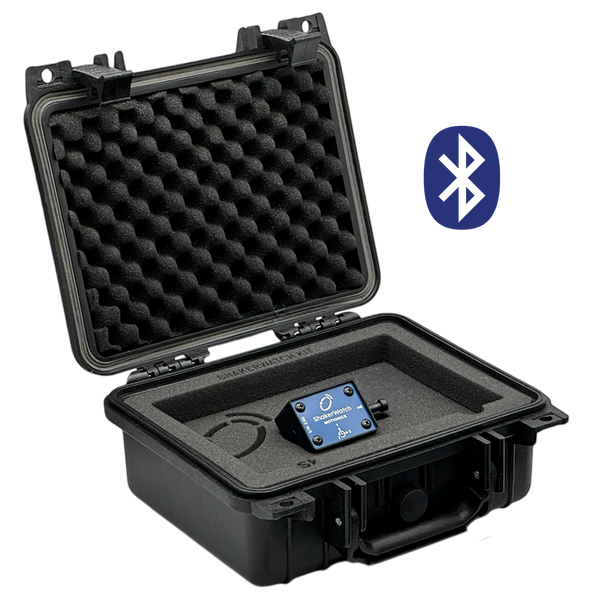

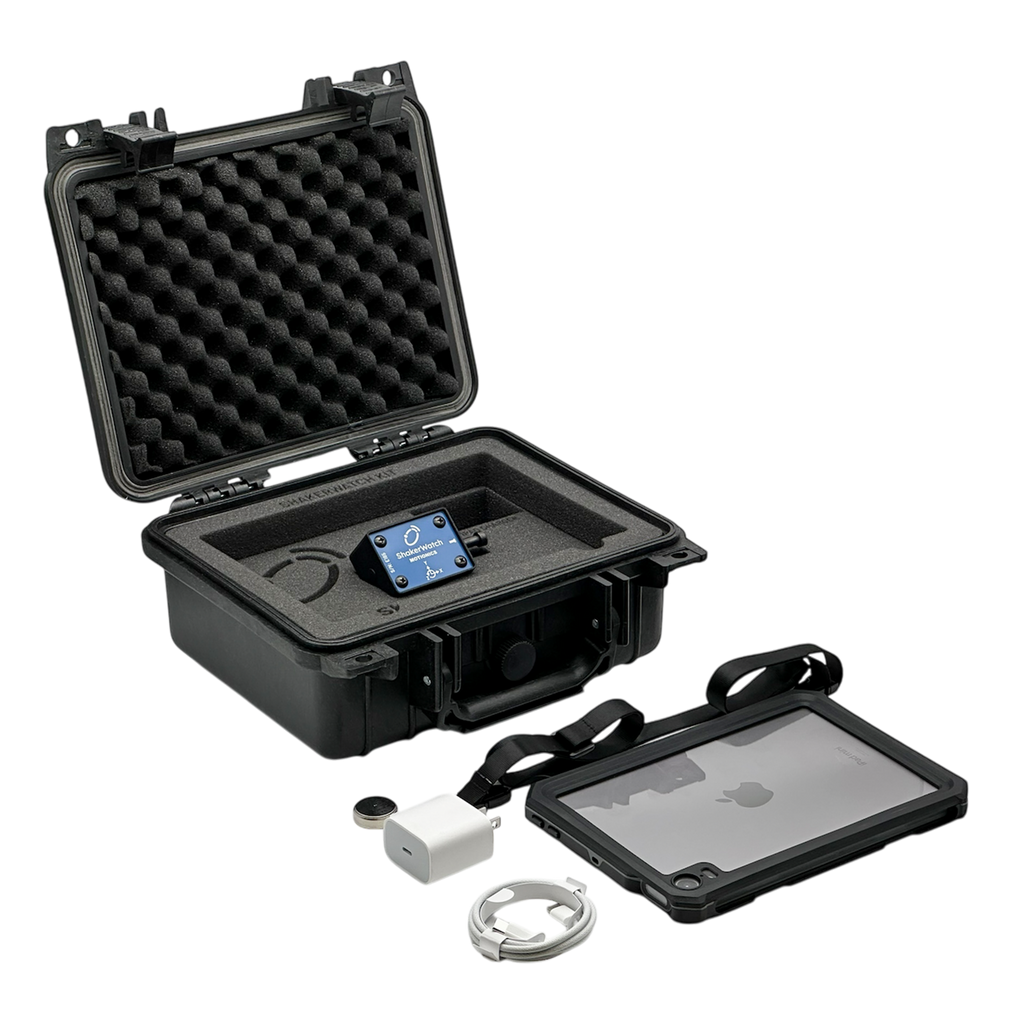

ShakerWatch Wireless Accelerometer
CR2477 Coin Battery x2
User Guide
Protective ShakerWatch Case
ShakerWatch iPad Application
iPad with Protective Case (Optional)
3-Year Extended Warranty (Optional)

Brochure

User Guide

Spec Sheet

Sample Report
