Wireless Measurement Read WiMER Series 1Product ID:

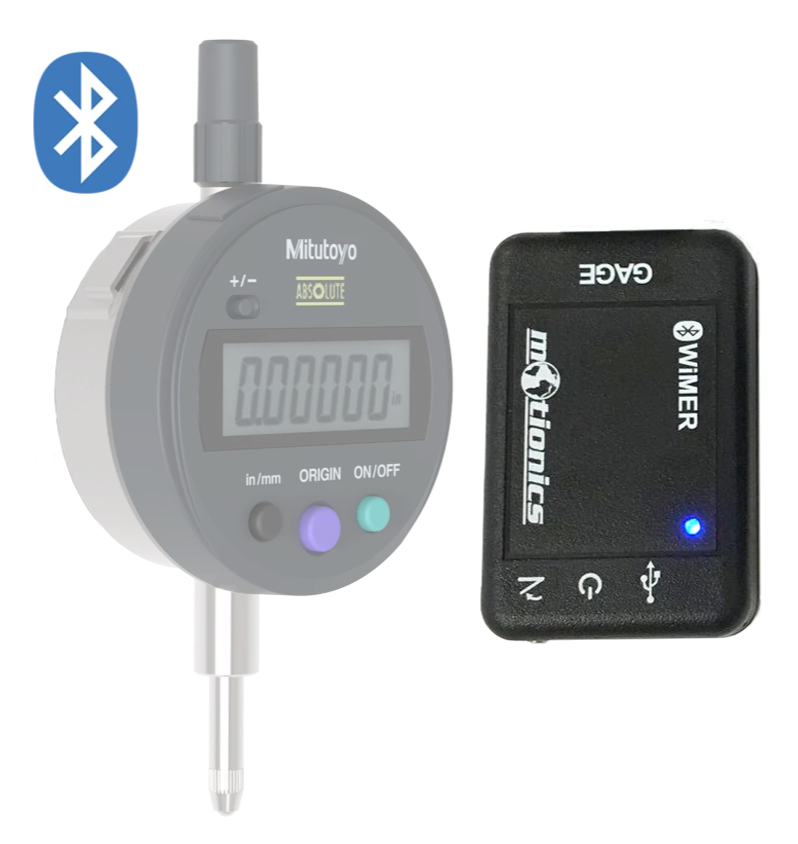

WiMER1 is a wireless transmitter device connecting to Mitutoyo/Mahr instruments with digimatic output. It reads digital micrometer/dial/caliper readings and communicates wirelessly with smart devices/Windows PCs via Bluetooth Low Energy, allowing the user to view the readings in real-time directly on the screen of smart devices/Windows PCs. It allows remote zeroing, recording, and storing the measurement readings in single mode by capturing individual readings or in continuous mode by capturing the gage readings at 10 samples/second.
- Caliper Series 500, 551, 552, 573
- Height Gage Series 192, 570, 574
- Micrometer Series 227, 293, 314, 317, 323, 324, 326, 331, 342, 343, 369, 389, 395, 406, 422
- Caliper Series 573
Dial Indicator Series 543 with SPC output Dial Indicator Series 575 Thickness Gage Series 547 Digimatic Caliper Gage Series 209 More compatible devices are available. Contact us to check the compatibility of more gages.
- Caliper MarCal 16, 18
- Depth Gage MarCal 30
- Height Gage 814 SR
- Micrometer Micromar 40, 44
- Dial Indicator MarCator 1075, 1086, 1087
- More Mahr instruments with digimatic output
Note: Hardware and software can be customized for various other engineering applications on request. Contact us for more information.
WiMER1 works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.
Cloud Remote Reading Option
WiMER1 also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.
By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.
MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.
|Measurement Range||Depends on instrument|
|Resolution||Depends on instrument|
|Accuracy||Depends on instrument|
|Wireless Data Rate||10Hz|
|Transmission Range||20 m (indoors)/30 m (outdoors)|
|Working Temperature||0 - 50 °C|
|Dimensions||2.50 x 1.63 x 0.80 in|
|Rechargeable Battery||400 mAh|
|Battery Life||60 hrs|
|Charging||5 VDC USB|
iOSMultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.
Rotor Runout is an app that works with a wireless dial indicator and a wireless angle sensor for rotor runout testing.
Pile Load Test is an app that works with wireless dial indicators and wireless load gauges for wireless pile load testing.
Apple Watch Compatible
- Companion Apple Watch app for MultiGage Reader on iPhone
- View wireless measurement device readings on your wrist.
- Start/stop continuous data recording or capture single reading by tapping on Apple Watch
MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.
LabVIEWLabVIEW is also in the list of compatible platforms. We provide Dial Reading VI covering device scanning, connection and data collection, and you can build your application on top of it.
- WiMER1 Base x1
- Trigger Switch x1
- USB Charging Cable x1
- USB Power Adapter x1
User Manual x1
- BLE Dongle (Optional)
*Required for PC use
- Data Cable (Optional)
- Extended Warranty (Optional)
