Wireless Multi-line Current Measurement Kit

Product ID:
$ 1,497.00

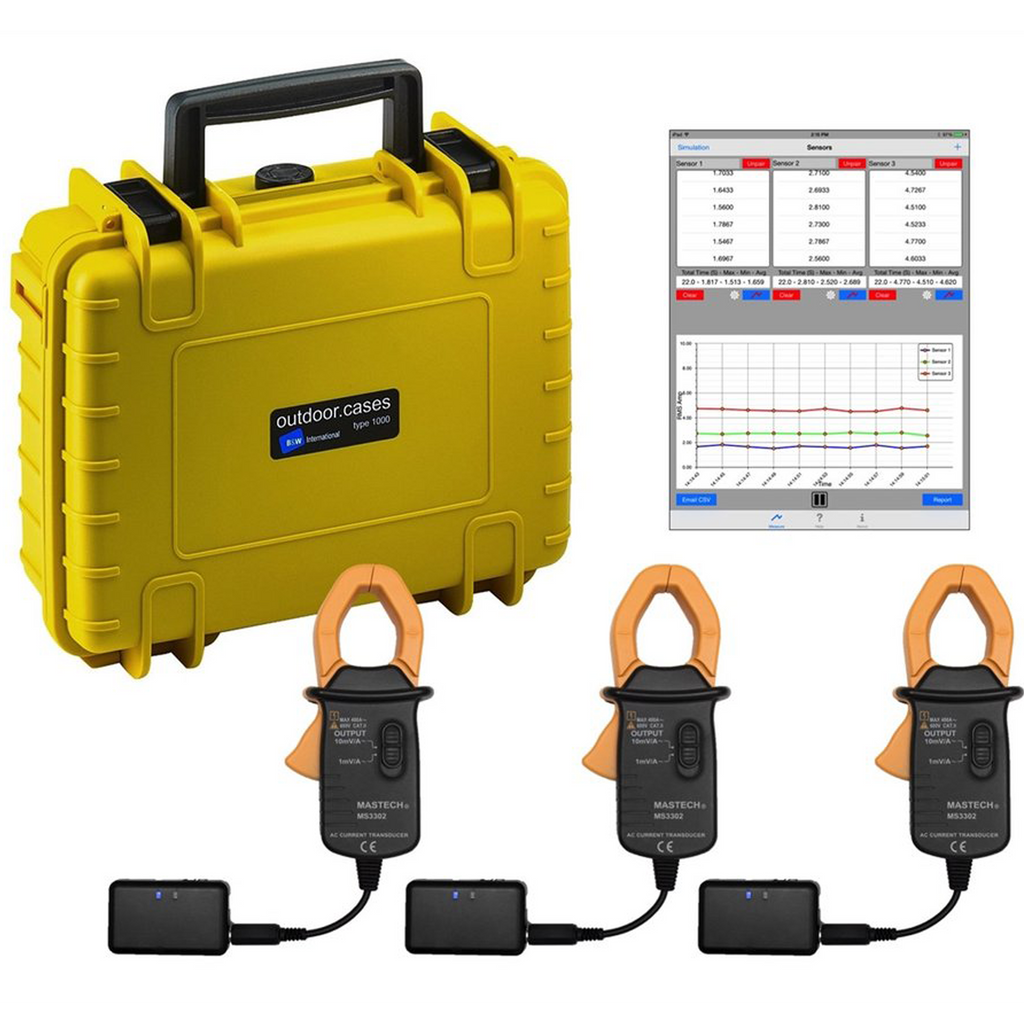

Wireless multi-line current measurement kit includes 3 current clamp transducers and 3 WiClamp bases. Each pair of clamp transducer and WiClamp is able to measure the TRUE RMS value of current in a cable and transmit measurement results wirelessly via Bluetooth Low Energy.

Our free iPad App BlueClamp can simultaneously connect to 3 WiClamps and received data updates from them wirelessly. Thus 3 power lines can be easily monitored at the same time on the iPad.

  • WiClamp Base Dimension: (2.36 x 1.41 x 0.6)in / (60 x 36 x 15)mm
  • Transducer Dimension: (2.52 x 5.63 x 1.18)in / (64 x 143 x 30)mm
  • Measurement Range: 1-115 A RMS (10 mV/A), 1-400 A RMS (1 mV/A)
  • Resolution: 0.3A (10 mV/A), 3A (1 mV/A)
  • Working Voltage: 600 V CAT II
  • Measurement Reporting Rate: 1Hz
  • Wireless Working Range: up to 10m / 33ft
  • Operating Temperature: 32 to 122ºF
  • Battery: 350mAh rechargeable
  • Charging: 5VDC USB
BlueClamp App is now available on the App Store for free. Click the icon below to download.



BlueClamp Features:
  • Multiple clamp connectivity on up to 3 devices (can be upgraded to 10 devices on request)
  • Real time readings in both tables and plots
  • Max, Min, Average
  • Individual clamp adding/removing during measurement
  • Individual plot control of each clamp
  • Individual clamp calibration and preference setting
  • Simulation mode for demonstration
  • Multiple sampling frequency: 2, 30, 60 seconds/sample
  • Pause/Resume during measurement
  • Data export in CSV file
  • Custom PDF report generation
  • Add company logo and machine image in report
  • Auto populate test date and test results in report
  • User signature and custom note
  • Facility location/map in report
  • PDF report wireless printing and email export
  • WiClamp Base x3
  • AC Current Transducer x3
  • Protective Carrying Case x1
  • USB Charging Cable x1
  • USB Power Adapter x1
  • User Manual x1

Wireless Multi-line Current Measurement Kit Brochure Brochure

Wireless Multi-line Current Measurement Kit User Manual User Manual

Full Product Catalog No.111 Full Product Catalog
