BlueProbe: Bluetooth Probe Deflection Gauge
Product ID:Contact Us for Custom Kit Options

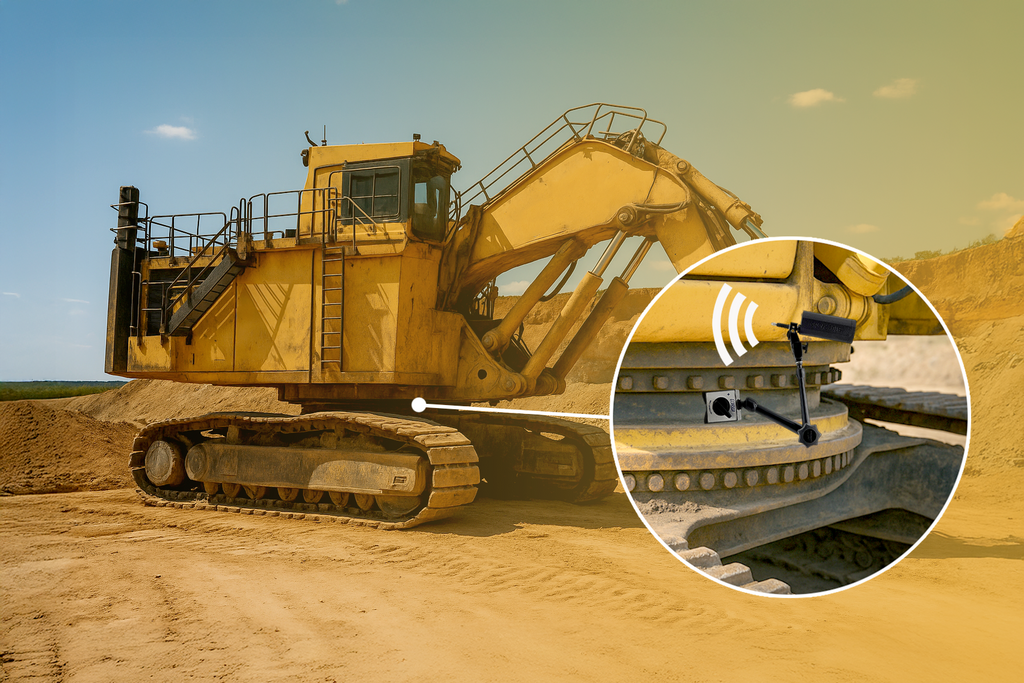

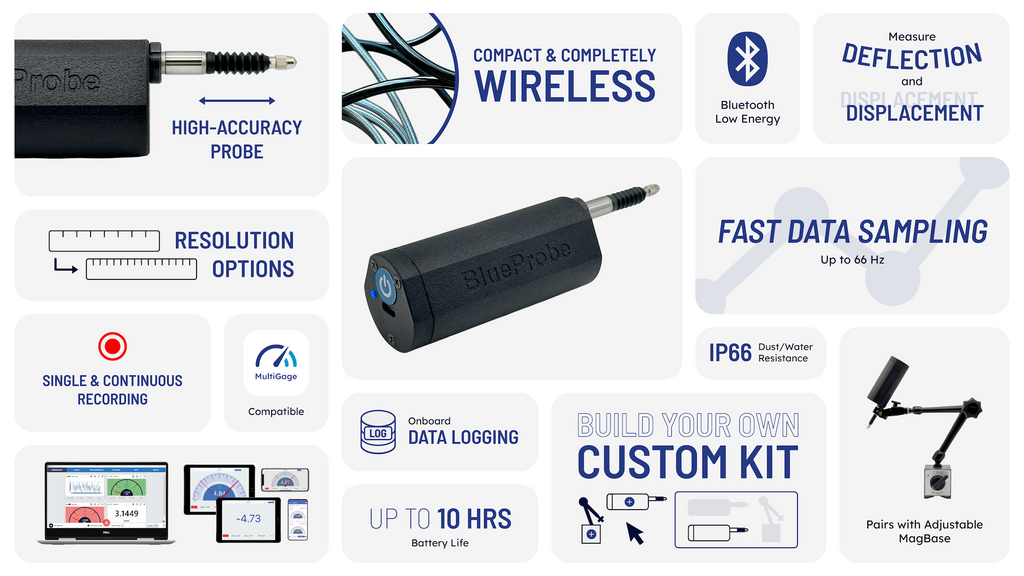

BlueProbe is a compact, durable Bluetooth gauge delivering high-accuracy displacement and deflection measurements with a fast data rate. It features a powerful built-in BLE transmitter, providing precise wireless measurement for a range of industrial applications.
BlueProbe delivers more reliable data for demanding precision tasks. With its integrated BLE connectivity, BlueProbe streams measurements wirelessly to your smartphone, tablet or Windows PCs over distances of up to 300 ft. Multiple probes can operate simultaneously, enabling synchronized measurements at different locations, and the system can seamlessly integrate with other gauge types for advanced multi-sensor applications.
Along with streaming real-time readings, BlueProbe also logs data internally. Users can easily start data logging on the device and return later to retrieve all measurements stored in the onboard memory in a single batch. This feature is great for scenarios where it’s inconvenient to keep a smart device or PC connected, or where wireless connectivity may be difficult to maintain during long data collection sessions.
Powered by a rechargeable battery, BlueProbe combines portability, precision, and flexibility, making it an ideal tool for engineers and technicians who require reliable, high-accuracy measurements in realtime without the need for messy cables.
BlueProbe works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.
The advanced wireless measurement software makes this Bluetooth probe deflection gauge more effective, allowing the user to read measurements from multiple devices at once, either continuously or in single capture mode with the press of a button. Additionally, there are many more innovative features in the app, such as an analog probe meter, cloud data streaming, a custom calculator, and so on, to make dimensional measurement faster and easier.
Upgrade to a BlueProbe Kit for further convenience and ease-of-use. This kit includes an adjustable magnetic base for mounting the gauge, and a protective carrying case with custom laser-cut foam to keep BlueProbe secure during transport and storage.
You can also now create a Custom BlueProbe Kit by adding any additional gauges, magnetic bases or an iPad to your kit.
🇺🇸 Made in the USA
Cloud Remote Reading Option
BlueProbe also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.
By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.
MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as tree maps, map view, and summary view. MultiGage Cloud is a subscription-based platform.
| BlueProbe Specification | PR1-0103 | PR1-0104 |
|---|---|---|
| Measurement Range | 0.4” (10mm) | |
| Resolution | 0.00005" (0.001mm) | 0.000005" (0.0001mm) |
| Accuracy | 1.5μm | 0.8μm |
| Data Transmission Range | 330ft (100m) | |
| Data Rate | Up to 66 Hz | |
| Dimensions (Incl. Plunger) | 5.45” (138.4mm) x 1.53” (38.9mm) x 1.52” (38.6mm) | |
| Stem Holding Diameter | 0.31” (8mm) | |
| Working Temperature | 32 to 122°F (0 to 50°C) | |
| Dust/Water Resistance | IP66 | |
| Battery | Rechargeable LiPo Battery | |
| Battery Life | 10 Hours | |
| Charging Time | 3 Hours | |
| Onboard Data Logging | Yes | |
| MagBase Magnetic Force* | Up to 176lbs | |
*Included with the BlueProbe Kit
Contact us for more details.
iOS
MultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.
Android
MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
App Features
Remote reading of dial from app in realtime Simultaneous reading of multiple gauges Continuous or single data point recording Max, Min, TIR measurement Remote zeroing from the app Large analog probe meter with adjustable range Full-screen large digital readout on the app Custom formula calculator GO/NG judgment with green/red color indication Realtime cloud data streaming worldwide Data saving in local database Data export in CSV via email and cloud drives Apple Watch support
Windows
MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
MultiGage Cloud
MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.
| Included | BlueProbe (Gauge Only) | BlueProbe Kit 1 |
|---|---|---|
| BlueProbe: Bluetooth Probe Deflection Gauge |
 1 |
1 |
| USB-C Charging Cable | |
|
| USB Adapter (For US Orders) | |
|
| USB Bluetooth Low Energy Dongle for Windows PC | |
|
| MultiGage (Software for iOS, Android, and Windows PC) | |
|
| MagBase: BlueProbe Magnetic Base |
1 |
|
| Protective Carrying Case with Custom Laser-Cut Foam |
1 |
