Bluetooth Dial Indicator Lite BlueDial-LT- Extended Warranty

More from this collection

Bluetooth Dial Indicator Lite BlueDial-LT- Extended Warranty

Product ID:
$ 430.00

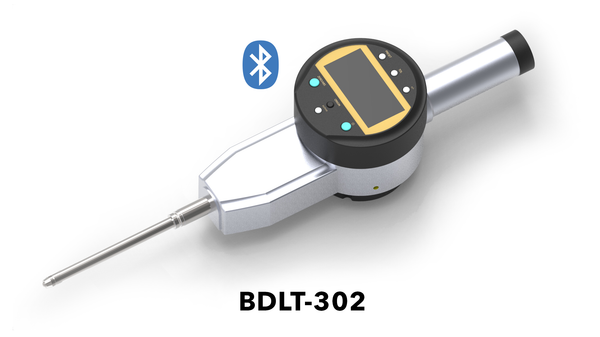

BlueDial-LT is a dial indicator with an integrated Bluetooth transmitter on the back. It integrates a high-accuracy dial indicator with a Bluetooth Low Energy data transmitter. All the readings will be wirelessly collected and displayed on a smart device or PC.

With a more affordable price, users can still benefit from the convenience of Bluetooth data transmission.

BlueDial-LT works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.



Cloud Remote Reading Option

></a></p>
<a href=

BlueDial also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.

By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.

MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.



BDLT-102 BDLT-103 BDLT-202 BDLT-203 BDLT-302 BDLT-402
Msmt Range .5 in/12.7 mm .5 in/12.7 mm 1 in/25.4 mm 1 in/25.4 mm 2 in/50.8 mm 4 in/101.6 mm
Resolution 0.0005 in/0.01 mm 0.00005 in/0.001 mm 0.0005 in/0.01 mm 0.00005 in/0.001 mm 0.0005 in/0.01 mm 0.0005 in/0.01 mm
Accuracy ±0.001 in ±0.0002 in ±0.001 in ±0.0002 in ±0.001 in ±0.001 in
Holding Stem Diameter 8 mm 8 mm 8 mm 8 mm 3/8 in 3/8 in
Wireless Data Rate 10Hz 10Hz 10Hz 10Hz 10Hz 10Hz
Transmit Range 20 m (indoors) / 30 m (outdoors) 20 m (indoors) / 30 m (outdoors) 20 m (indoors) / 30 m (outdoors) 20 m (indoors) / 30 m (outdoors) 20 m (indoors) / 30 m (outdoors) 20 m (indoors) / 30 m (outdoors)
Working Temp 0 - 40°C 0 - 40°C 0 - 40°C 0 - 40°C 0 - 40°C 0 - 40°C
Battery 400 mAh 400 mAh 400 mAh 400 mAh 400 mAh 400 mAh
Battery Life 50 hrs 50 hrs 50 hrs 50 hrs 50 hrs 50 hrs
Charging 5 VDC USB 5 VDC USB 5 VDC USB 5 VDC USB 5 VDC USB 5 VDC USB

Click the icons below to view more details or contact us for more information.

iOS

MultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone. There are also other apps compatible with BlueDial-LT, such as our Rotor Runout app and our Pile Load Test app.

MultiGage Reader App Runout App

Apple Watch Compatible

  • Companion Apple Watch app for MultiGage Reader on iPhone
  • View wireless measurement device readings on your wrist.
  • Start/stop continuous data recording or capture single reading by tapping on Apple Watch

Android

MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.

Windows

With this USB Bluetooth Dongle and our FREE software MultiGage Windows, you can also stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.

MultiGage Cloud

Motionics’ MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.

LabVIEW

LabVIEW is also in the list of compatible platforms. We provide Dial Reading VI covering device scanning, connection and data collection, and you can build your application on top of it.



  • BlueDial-LT x1
  • USB Charging Cable x1
  • USB Power Adapter x1
  • User Manual x1
  • ISO 17025 Calibration Certificate (Optional)
  • BLE Dongle (Optional)
    *Required for PC use
  • Protective Case (Optional)
    *If you include a protective case, the case color will be sent randomly
  • Extended Warranty (Optional)

BlueDial-LT Brochure Brochure

BlueDial-LT User Manual User Manual

Full Product Catalog No.111 Full Product Catalog

BlueDial Brochure MultiGage Brochure

BDLT-102 Dimensions BDLT-102 Dimensions

BDLT-202 Dimensions BDLT-202 Dimensions

BDLT-302 Dimensions BDLT-302 Dimensions

BDLT-302 Dimensions Flyer
